Installaon instrucons for the OPEN SURF System and OPEN SURF System 2 above-water automac slaed safety cover - 8/22
8

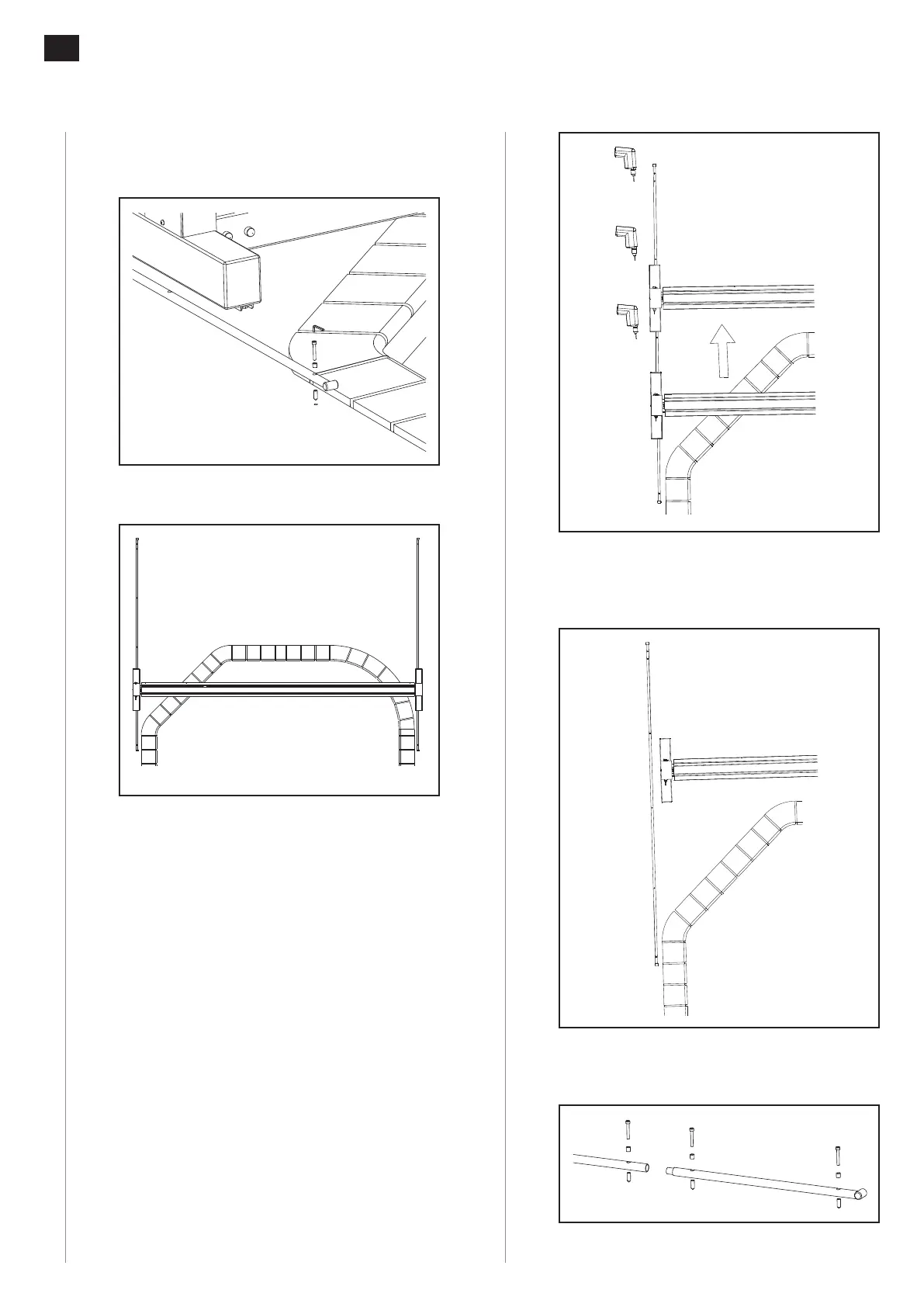

Fig. 12
- Next ret it and x it using the spacer and the
CHC M6 x 40 screw.
Fig. 12
Fig. 13
- Pivot the rail so that it is parallel to the pool.
Fig. 13
Fig. 14
- Pre-drill all the other holes keeping the
OPEN SURF close to the hole to be drilled in order
to maintain a constant gap between the rails.
Fig. 14
Fig. 15
- Remove the OPEN SURF from the rail and pivot
the rail to one side in order to enlarge the holes to
Ø 8 mm.
Fig. 15
Fig. 16
- Insert all the other anchors into the holes and x
the rail using the spacers and screws.
Fig. 16
