NX Series Product User Manual

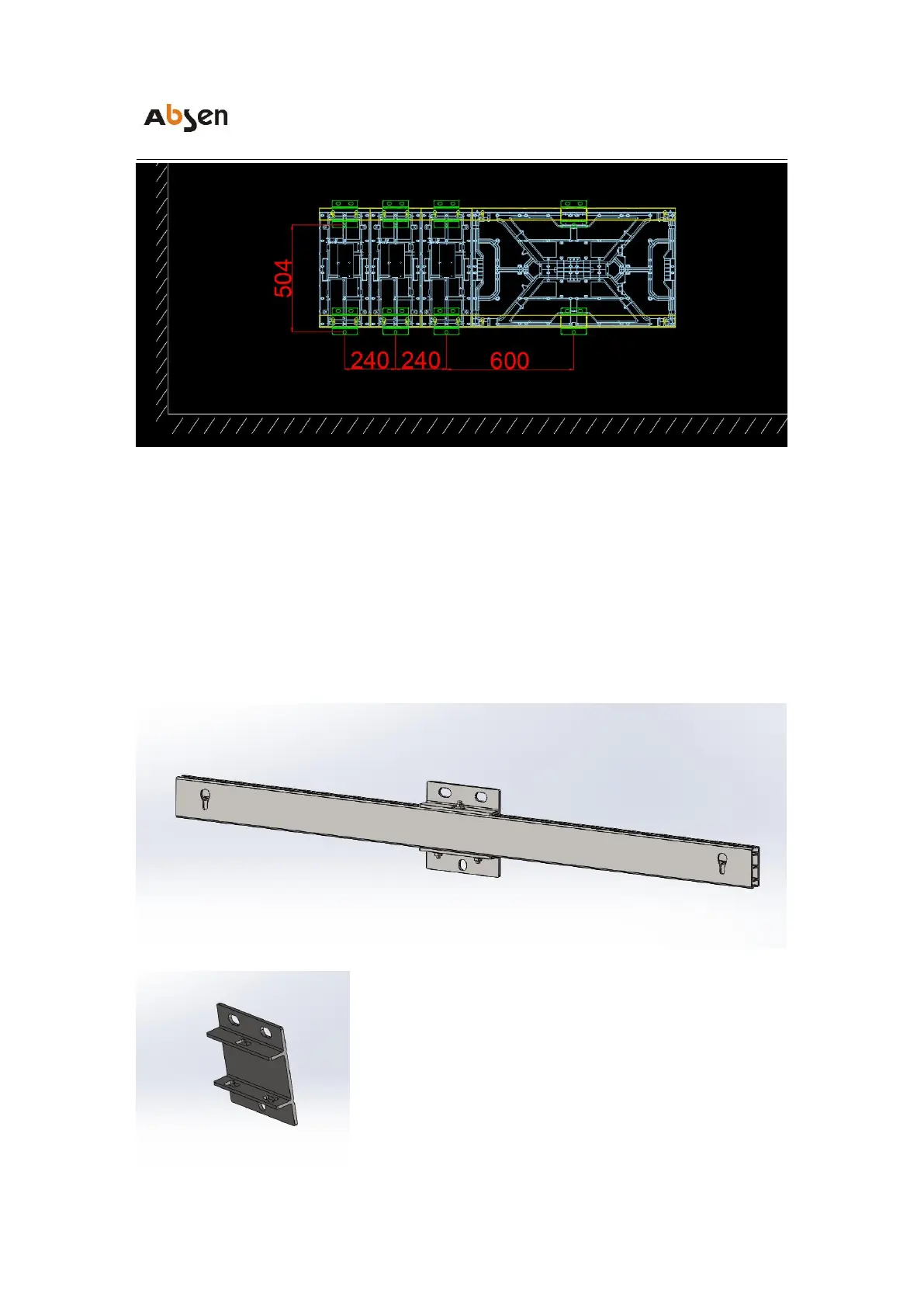

As shown in the figure above, calculate the first wall connector at the lower left
of the big cabinet;
After installing the big cabinet, install the small cabinet;
No matter whether the small cabinet is installed on the left or right, install the
large cabinet first, and then install the small cabinet;
Note: The small cabinet is installed on the left to reserve a position.
2. Install the horizontal and vertical bars, the bars are fixed with the wall
connectors, and the bars are fixed:
