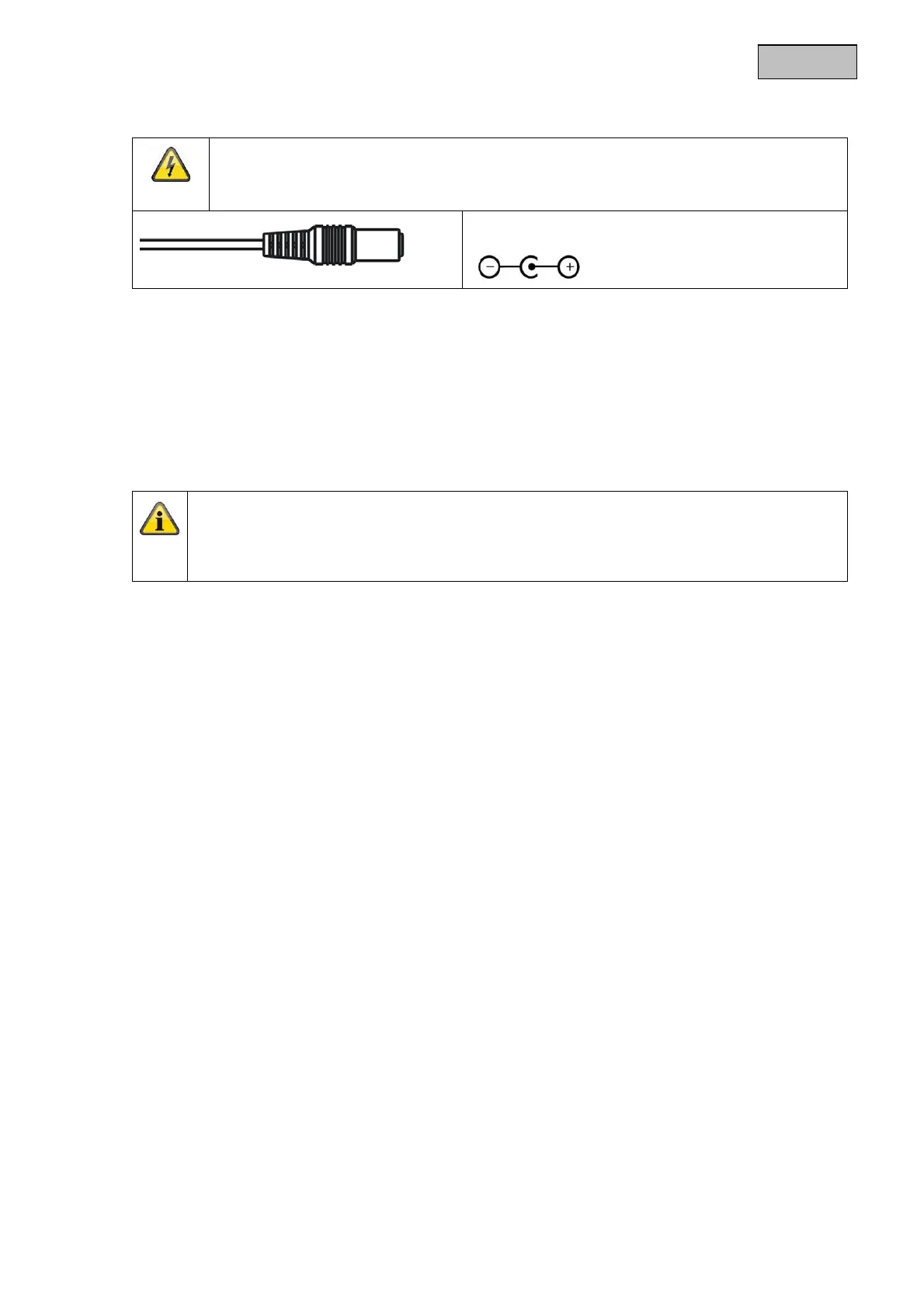

5.3. Power supply
IMPORTANT!
Before starting installation, ensure that the power supply voltage and the rated voltage of
the camera are identical.
12 V DC, barrel connector, 5.5 x 2.1 mm
The cameras require a 12 V DC power supply. The polarity of the DC voltage supply must be observed!
5.4. Connecting the video cable
In order to transmit the HD-TVI video signal from the camera to a recorder, an RG59 type coaxial cable
with BNC connector (male) must be connected to the connection labelled 'TVI'. The cable length to the
next device must not exceed 500 m.
To ensure optimum quality of the HD-TVI signal transmission, it is important that the cable is
neither kinked nor crushed at any point, and that its radius is adequate (min. bending radius
6 cm).
Damage to the cable or porosity as a result of ageing can have a negative impact on the
qualit
y
of the si
g
nal or ima
g
e
(
e.
g
. shadowin
g
around the ed
g
es
)
.
