26
English

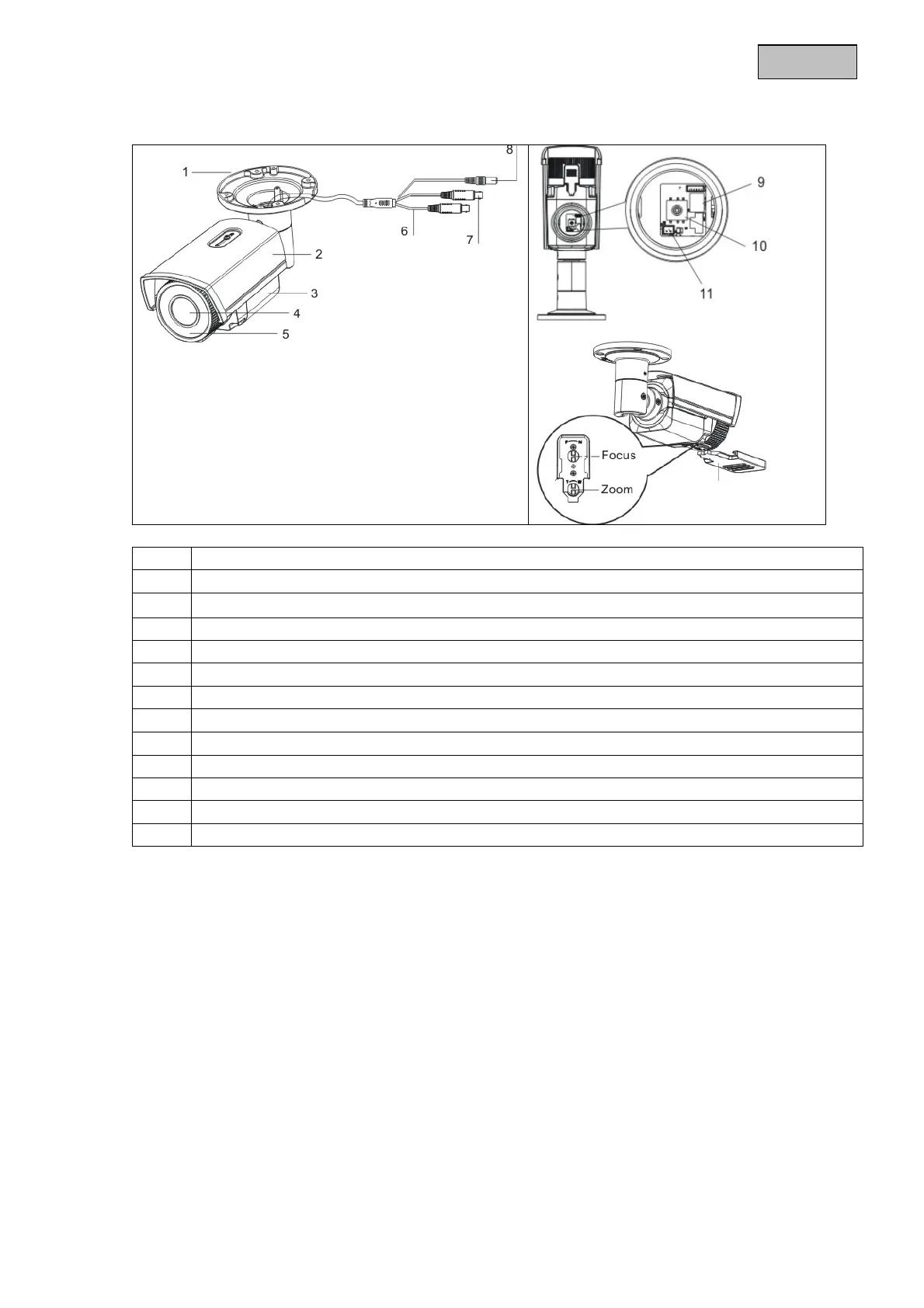

4. Camera description
1 Camera mount
2 Sun shield
3 Camera centre section, with zoom and focus setting on the underside
4 Lens
5 Infrared LEDs
6 Analogue video output (BNC, for service purposes, labelled 'CVBS')
7 HD-TVI video output (BNC, labelled 'TVI')
8 Power supply connection (2-pin connection, 12 V DC, 24 V AC)
9 HDCC61510: Switch between HD-TVI and analogue video output
10 Joystick for controlling the on-screen display
11 Additional connection for analogue video output (2-pin adapter provided in scope of delivery)
Focus Focus setting
Zoom Zoom setting
