4.1.2. Recessed ceiling mounted installation

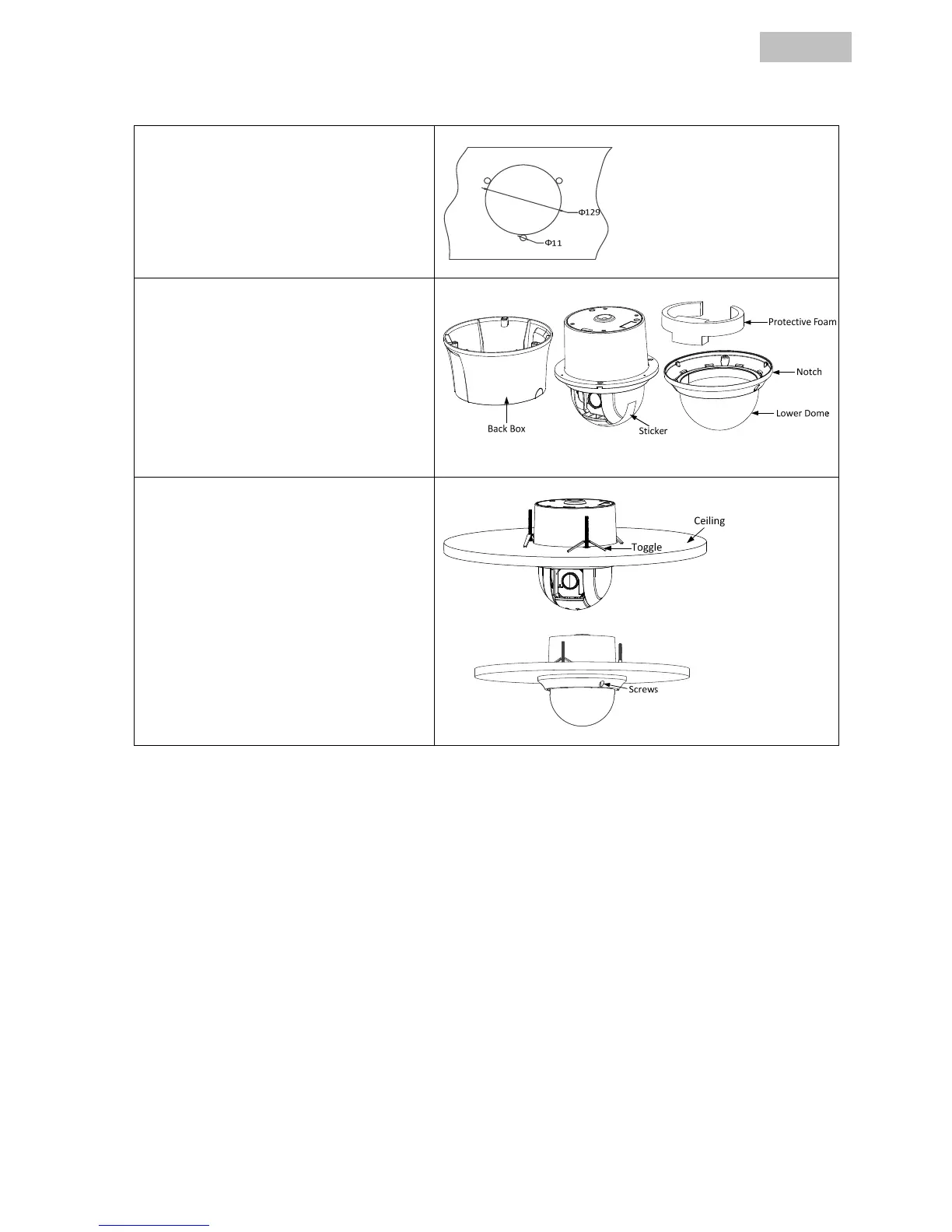

In order to mount the camera within the
ceiling, an opening in the ceiling of 129 mm
in diameter and three holes of 11 mm in
diameter are required (see diagram).
Required ceiling recess depth: 90 mm
Maximum ceiling panel thickness:
55 mm
Remove the PTZ camera's decorative
cover. Now remove the transport restraints
(sticker on the dome, plastic inlay).
Affix the PTZ camera to the ceiling panel
using three expansion screws.
The dome is then attached using three
screws.
