Abus HDCC82500 Quick Guide

31
English
5.4 Wall mount installation incl. power supply unit installation (TVAC31241)

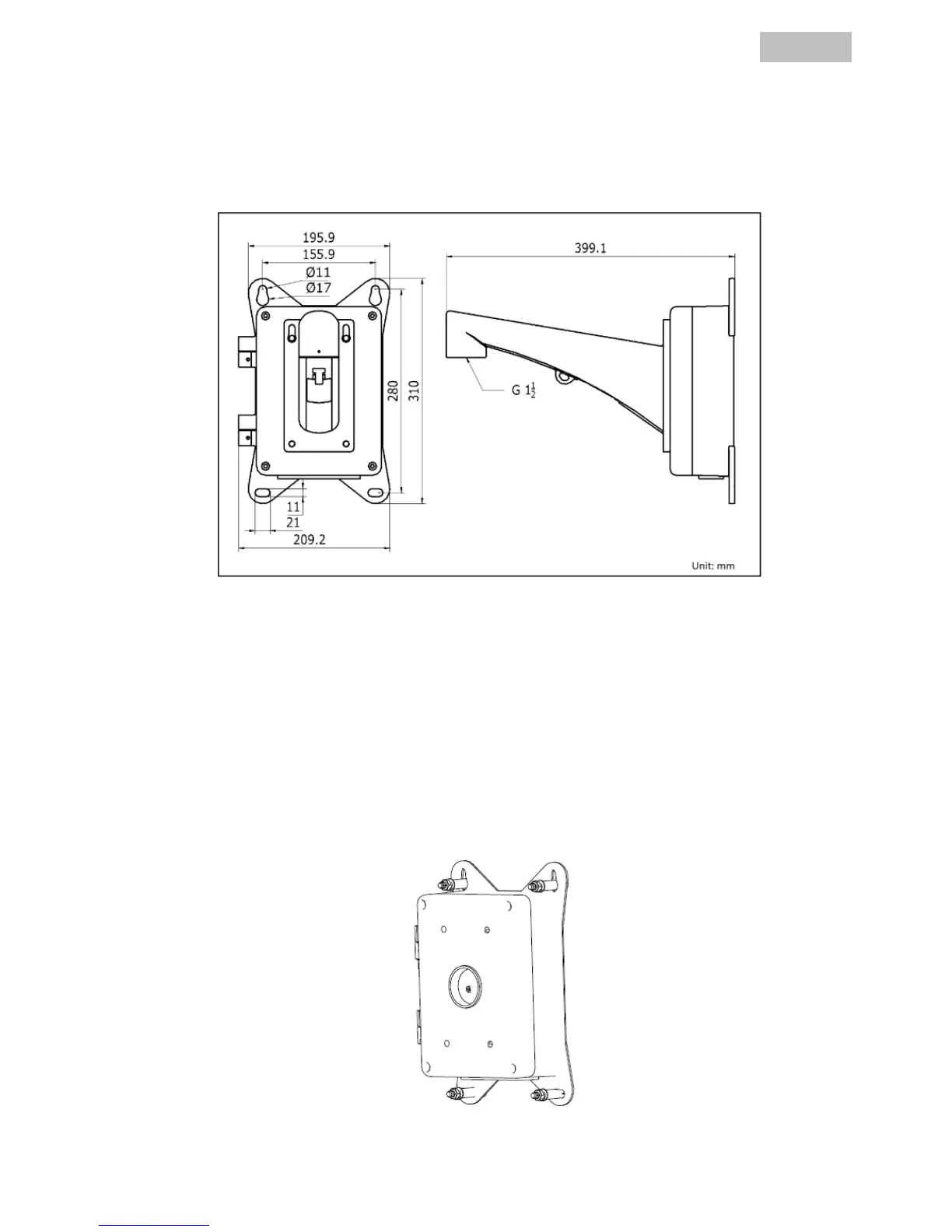

5.4.1 Dimensions
TVAC31241
5.4.2 Installation
Before starting:
 The wall must be thick enough to allow the straddling dowels to be fitted.
 Make sure that the wall is strong enough to bear more than 8 times the weight of the PTZ Dome and
its mount.
1. Drill four holes corresponding to the dimensions in the diagram shown above.
2. Attach the straddling dowels.
3. Install the wall mount.
