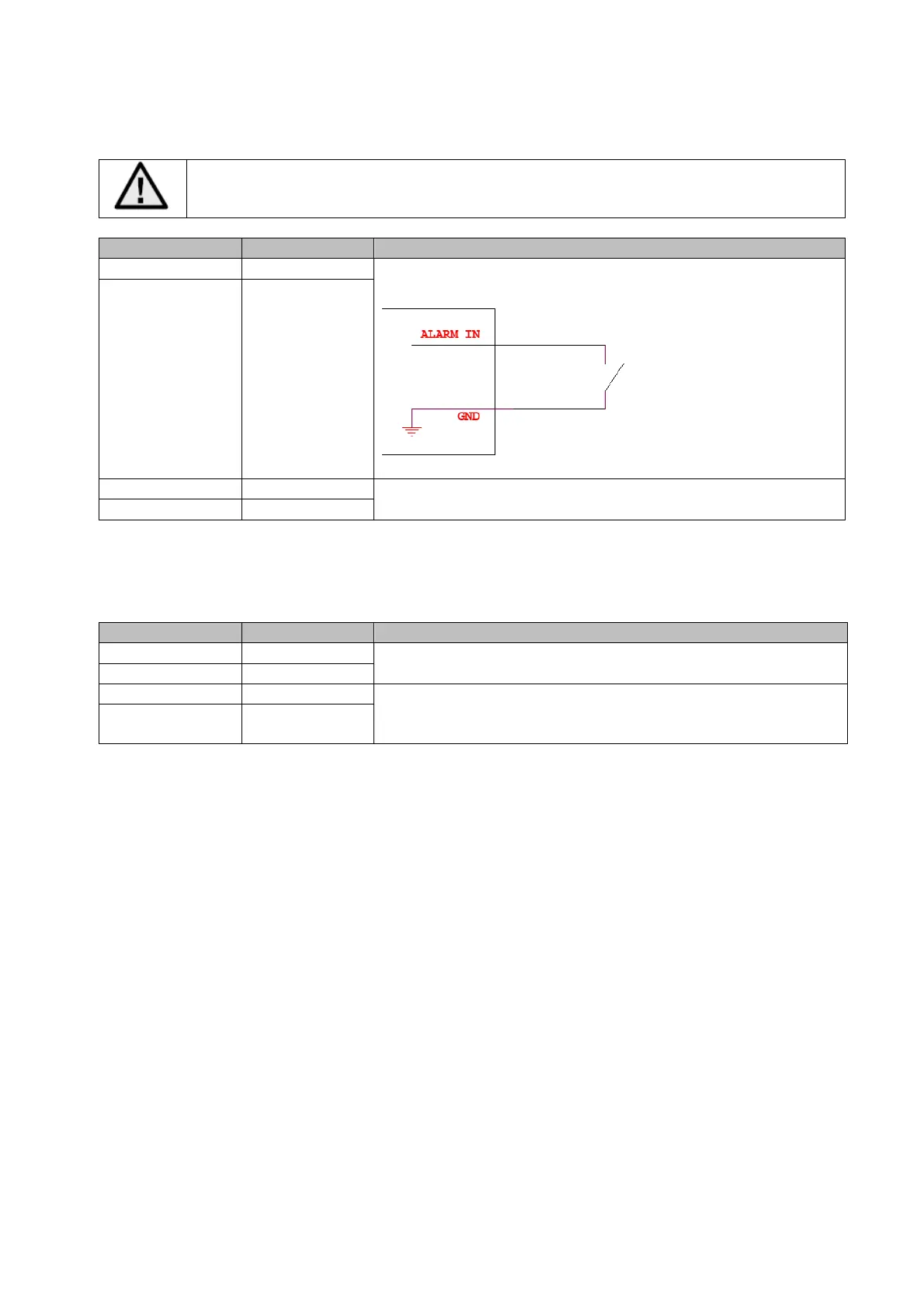

3.5 Switching input/output
The maximum load values must be observed, otherwise, the camera may be
irreparably damaged.
Description Connection information
Switching input „IN“ Bridge between „IN“ and „G “
„G“ (GND)
Switching output „OUT“ 12 V DC / 24 V AC, max. 500 mA
„G“ (GND)
3.6 Audio input / audio output
Description Connection information
A
udio input „IN“ MIC / LINE Interface
LINE: max. 3.3 Vpp, input impedance 4.7 kΩ
„G“ (GND)
A
udio output „OUT“ Impedance: 100 Ω
Frequency range: 20 Hz – 20 kHz
Output amplitude: max. 3.3 Vss
„G“ (GND)
