3. Connections and functions
3.1 Connections
ATTENTION!
Before you begin the installation, make sure that the supply voltage and the
nominal voltage of the camera match.

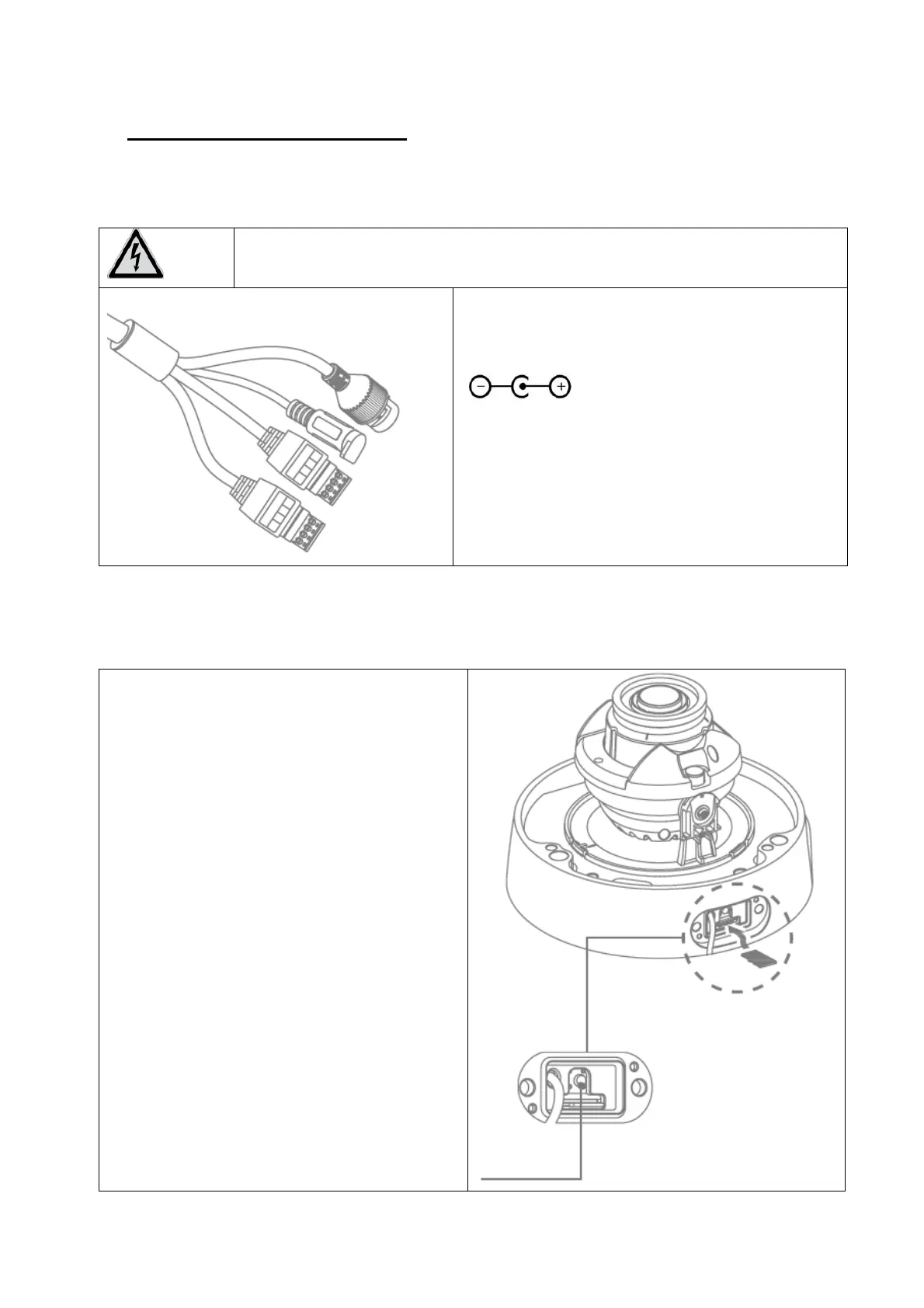

1: Network connector (RJ45, PoE 802.3af)
2: Power connector, 12 V DC, ensure that
the polarity is correct
3: “ALARM” (switching input, switching
output)
4: “AUDIO” (audio input, audio output)
3.2 Call factory default settings (Reset)
1. Please disconnect the camera form power
connection.
2. Press the "Reset" button on the camera
and keep it pressed.
3. Now connect the power supply to the
camera (power supply or Power over
Ethernet), and hold the "Reset" button
pressed for another 30 seconds.
2
1
3
4
