125
8.6 Events

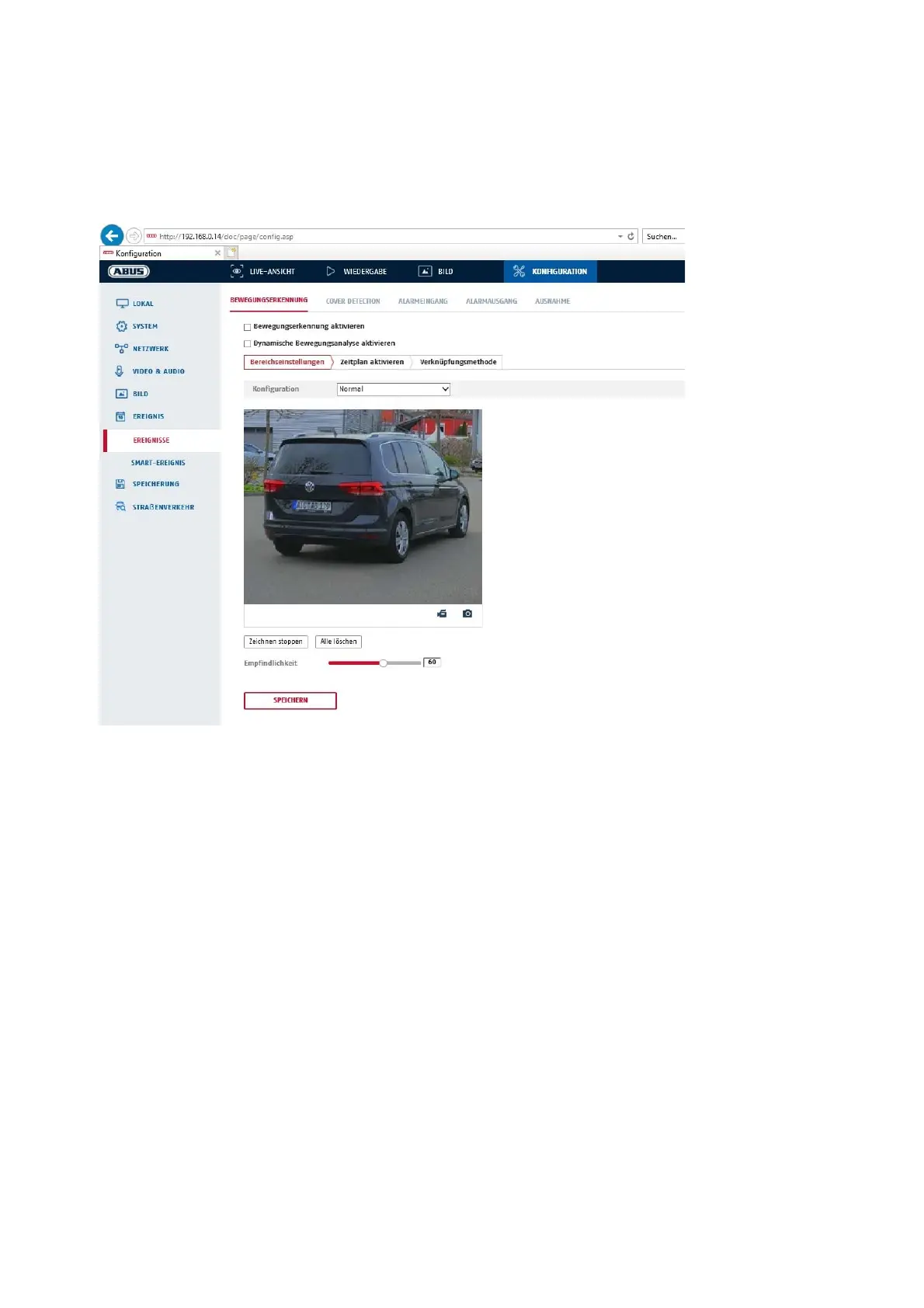

8.6.1 Motion detection
Area settings
Activate motion detection by clicking the "Enable Motion Detection" checkbox.
Clicking “Enable Dynamic Analysis for Motion” means that movements are recorded in the preview image and
the live view (dynamic recording according to motion).
Mode
There are 2 different modes available for marking areas.
Normal: Max. 4 areas, each area as a polygon with max. 10 corners, sensitivity setting is the same for
each area
Expert: Max. 8 areas, each area as a rectangle, individual sensitivity setting for each area
To select an area, click the "Set area" button. To discard the selection, click on "clear all".
Click with the left mouse button to define the corners of the polygon, or drag the mouse pointer over the
desired area. When drawing the polygons, a right click ends the drawing. For rectangles, click on the "Stop
drawing" button.
Set the sensitivity using the regulation control bar.
