37

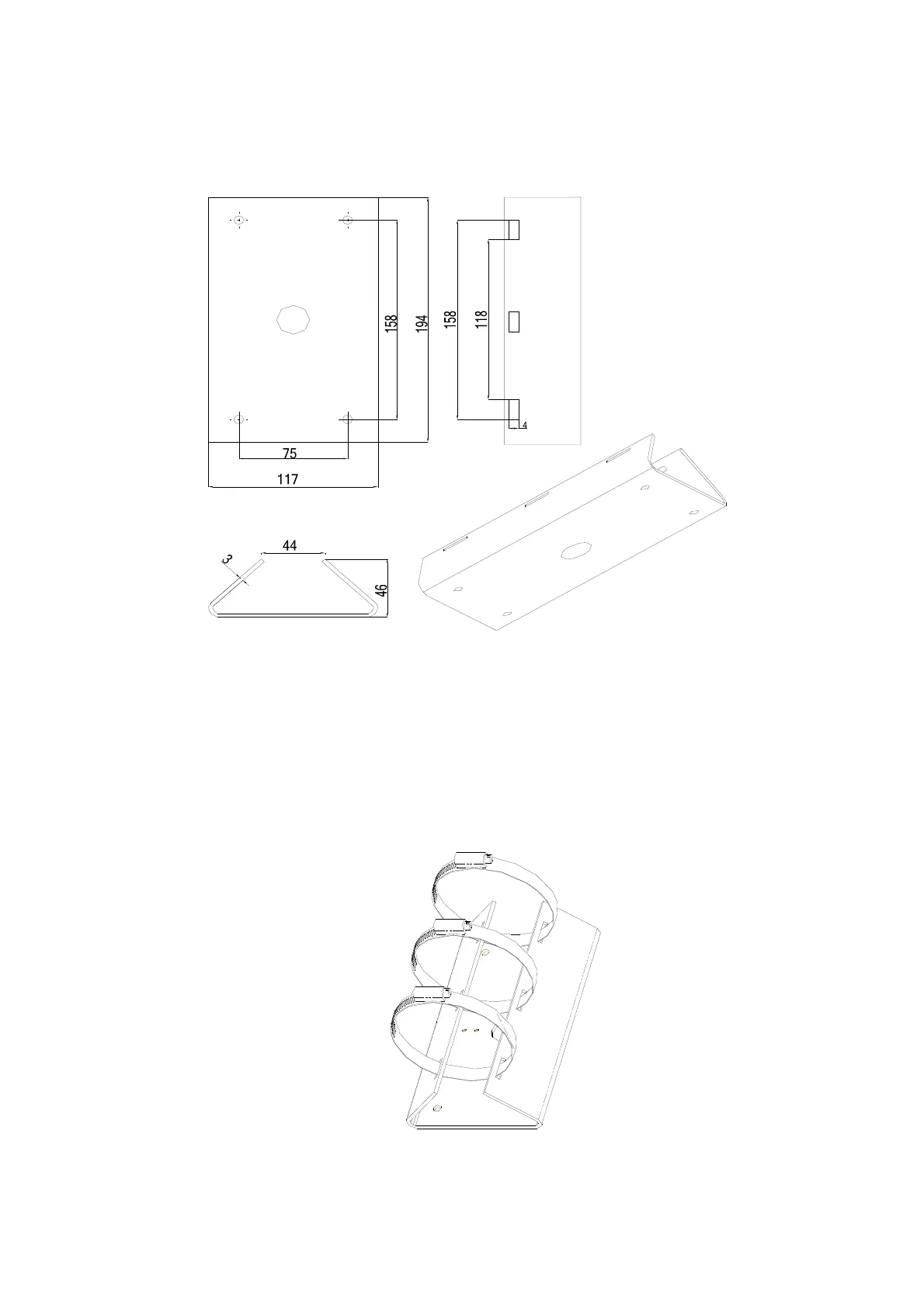

3.7.3 Wall mount on Pole mount
TVAC31221
Before starting:
The diameter of the stainless steel clamps must be the same as the diameter of the mast.
Make sure that the mast is strong enough to bear more than 8 times the weight of the PTZ Dome
and its mount.
1. Undo the screws in the stainless steel clamps using a screwdriver.
2. Guide these through the openings in the pole mount.
3. Pull the connecting cable through the middle hole in the pole mount.
4. Secure the stainless steel clamps by tightening the screws.
