33
3.7 Mounting options

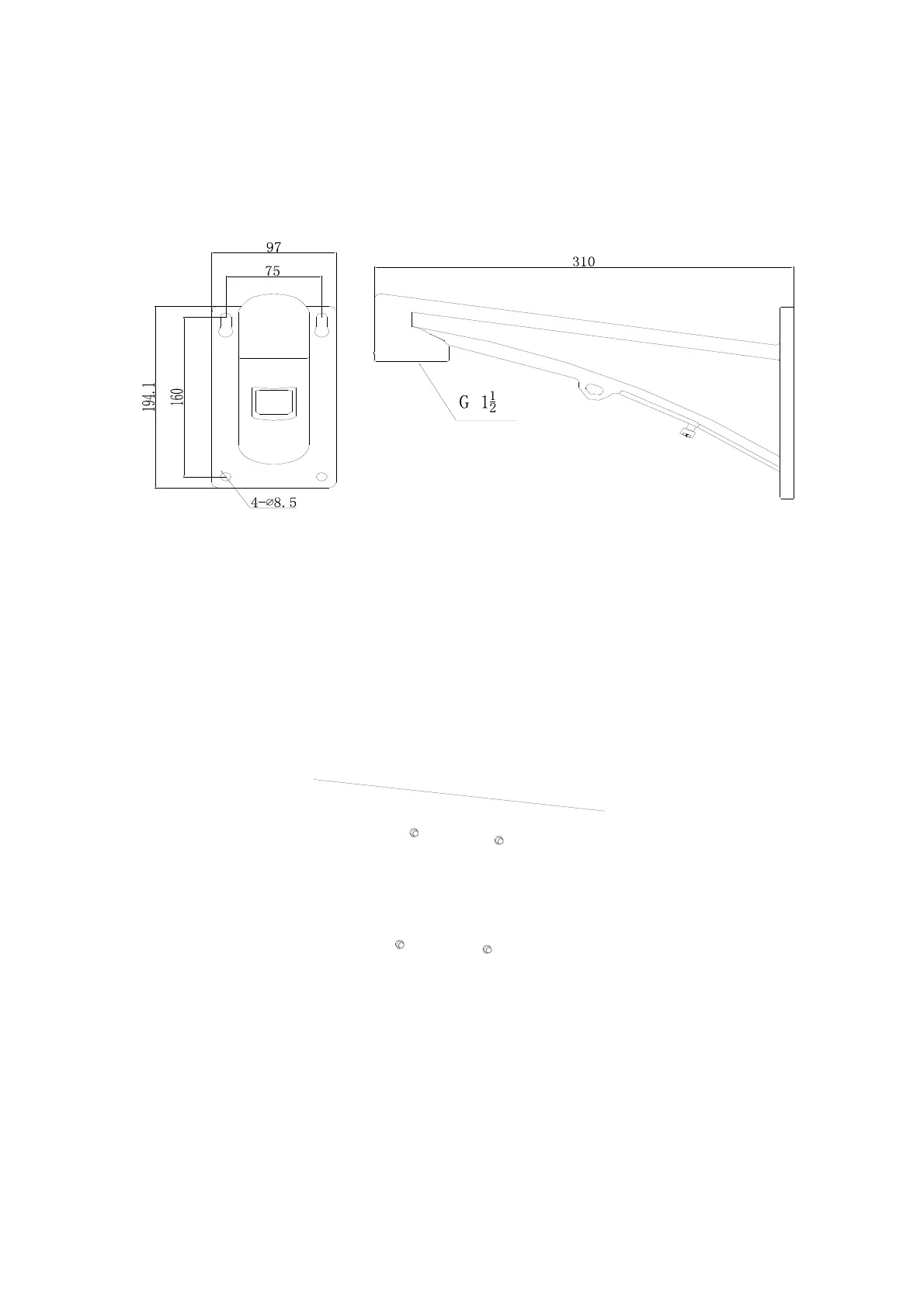

3.7.1 Wall mount
TVAC31201
Before starting:
The wall must be thick enough to allow the straddling dowels to be fitted.
Make sure that the wall is strong enough to bear more than 8 times the weight of the PTZ Dome
and its mount.
1. Drill four holes in the wall which correspond to the dimensions, and then push the straddling
dowels into the wall.
2. Attach the seal between the wall and mount using the straddling dowels to help you.
3. Use the washers and nuts to install the mount.
