Abus PPIC34520 - Ppic35520

8
English

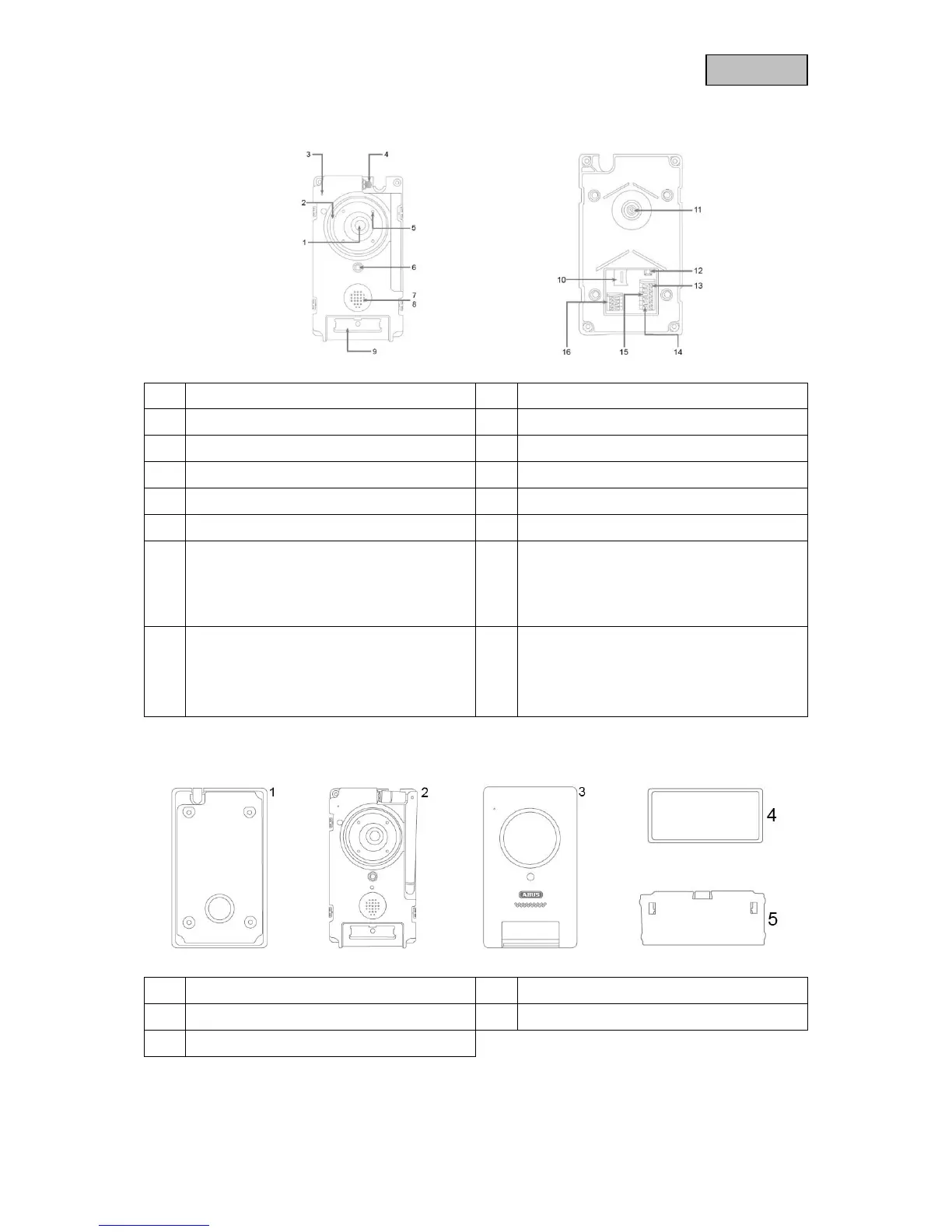

2.4. PPIC35520
1
Lens
2
White light LED ring
3
Microphone
4
Antenna connection (RP-SMA)
5
IR LEDs
6
Photo sensor
7
Loudspeaker
8
RFID reader
9
Call button
10
MicroSD card slot (max. 128 GB)
11
Adjustable lens (V: 7.5 %, H: 2.5 %)
12
Reset button
13
B2/B1 connector block:
Potential-free relay for connection for,
e.g. door opener.
Maximum input 2 A / 24 V AC/DC
14
C2/C1 connector block:
Potential-free relay for connection for an
external doorbell.
Maximum input 2 A / 24 V AC/DC
15
V-/V+ connection block:
Connection for power supply.
AC – Alternating Current: 9–36 V
DC – Direct Current: 12–48 V
16
TD-/TD+/RD-/RD+ connector block
LAN interface connection
Individual intercom components
1
Mounting plate
2
Door station
3
Cover
4
Call button cover
5
Call button pressure plate
