Abus TVAC10101 - Interfaces

20
Interfaces

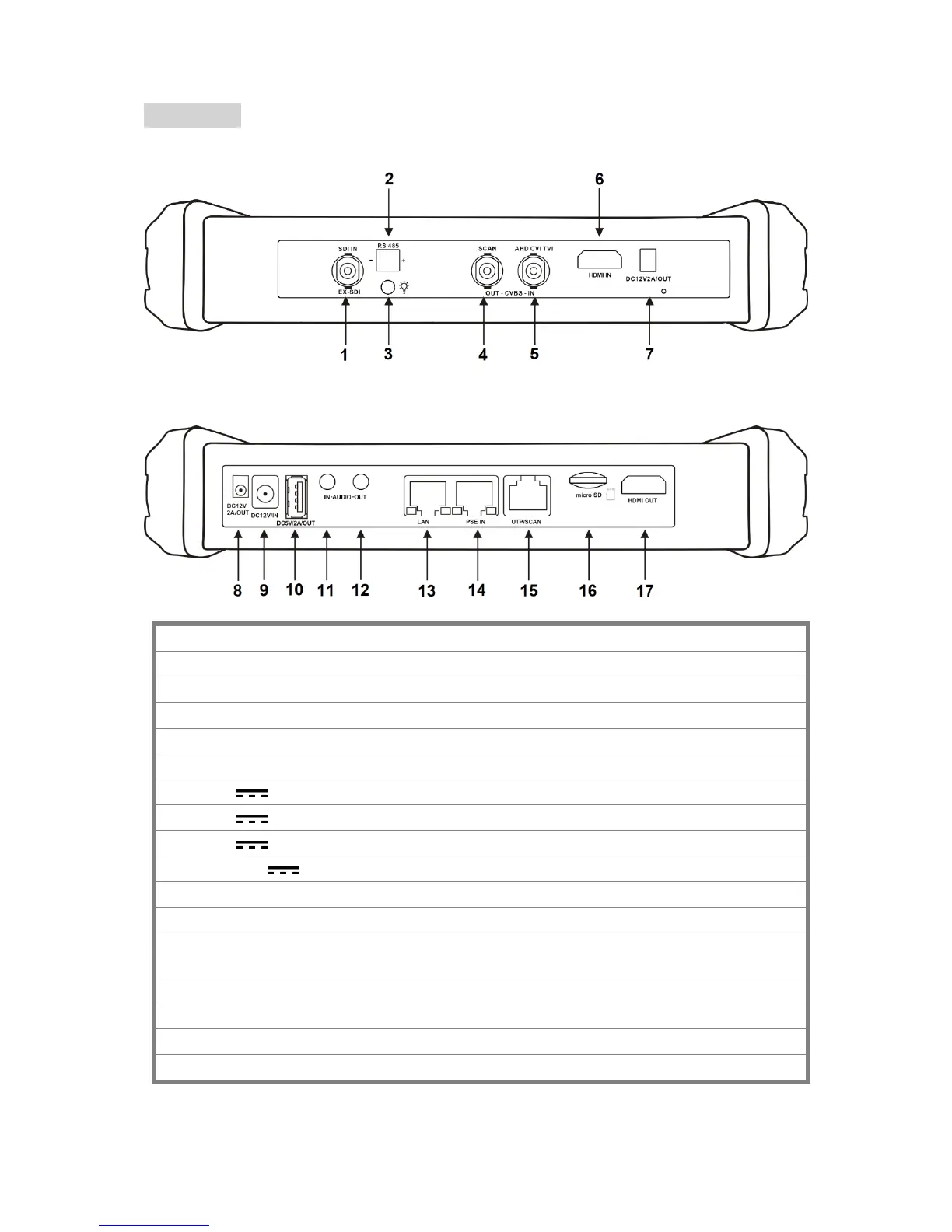

Top interfaces:
Bottom interfaces:
1
SDI input (BNC interface)
2
RS485 Interface for controlling of PTZ cameras
3
LED lamp
4
Video signal output (BNC interface）/ cable tracer interface
5
TVI/CVI/AHD/CVBS input (BNC interface)
6
HDMI input
7
12V , 3A power output, for provisional DC power supply
8
12V , 3A power output, for provisional DC power supply
9
12V , 2A charging interface
10
USB 5V , 2A power output (only for power, no data)
11
Audio input
12
Audio output and earphone interface
13
LAN test port with PoE power supply output for test of PoE or non-PoE IP
cameras
14
PSE input (power sourcing equipment) for test of PoE voltage
15
UTP cable port: UTP cable tester port / Cable tracer port
16
Micro SD card (supports up to 32GB)
17
HDMI output
