Acard ARS-2021 - ARS-2021;2021 S Copy Smart Plus: Board Layout

21
ARS-2021/2021S Copy Smart Plus

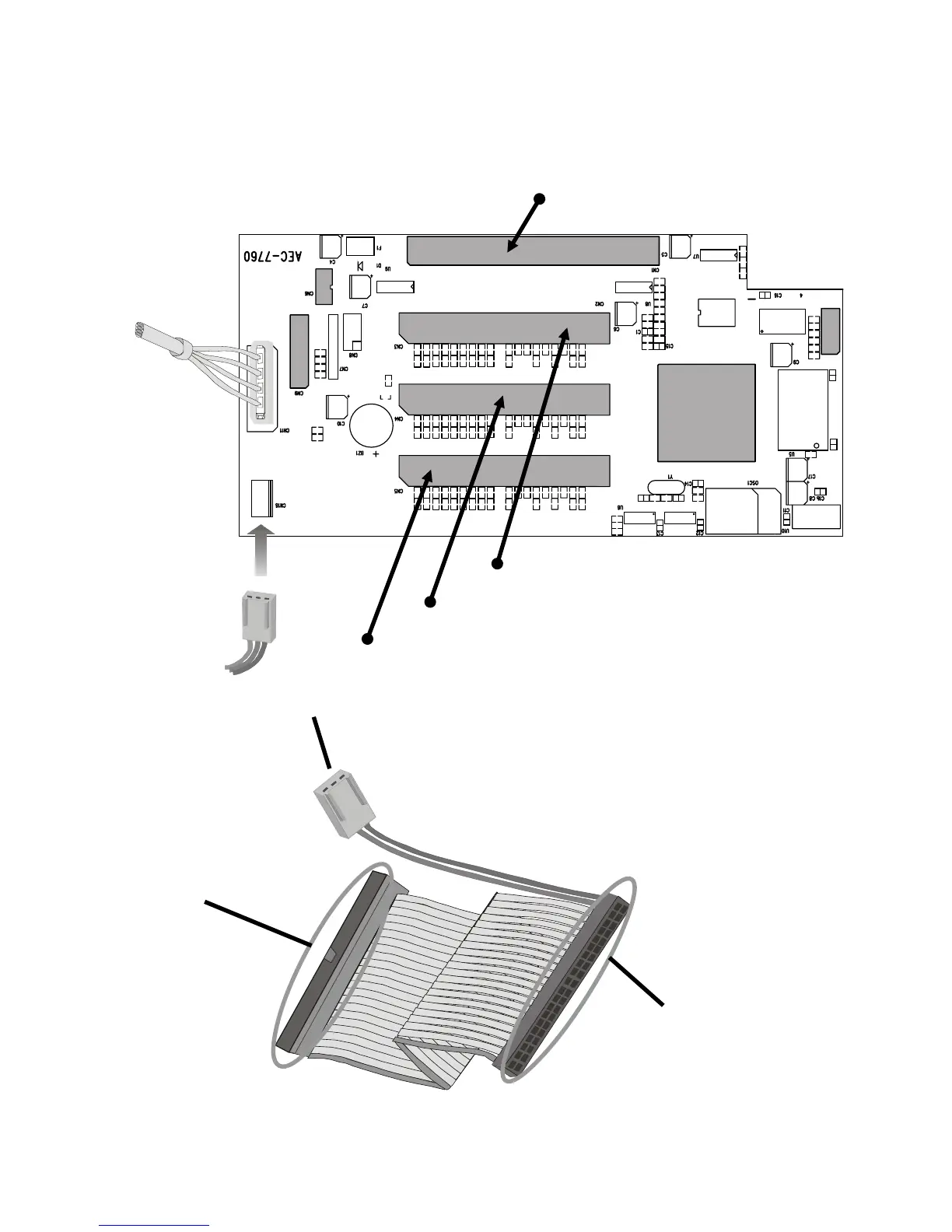

Chapter 4 Board Layout
Ultra SCSI Link Host
IDE Port for 2.5” Hard Drive (Connect to CN3)
IDE Port for CD-R/RW (Connect to CN5)
IDE Port for CD-ROM (Connect to CN4)
Power Cable
(Connecting from 44-Pin IDE Cable)
Power Cable
44-Pin IDE Cable with power connector
Connect to 2.5” Hard Drive IDE Port
Connect to on board IDE Port
CN3
