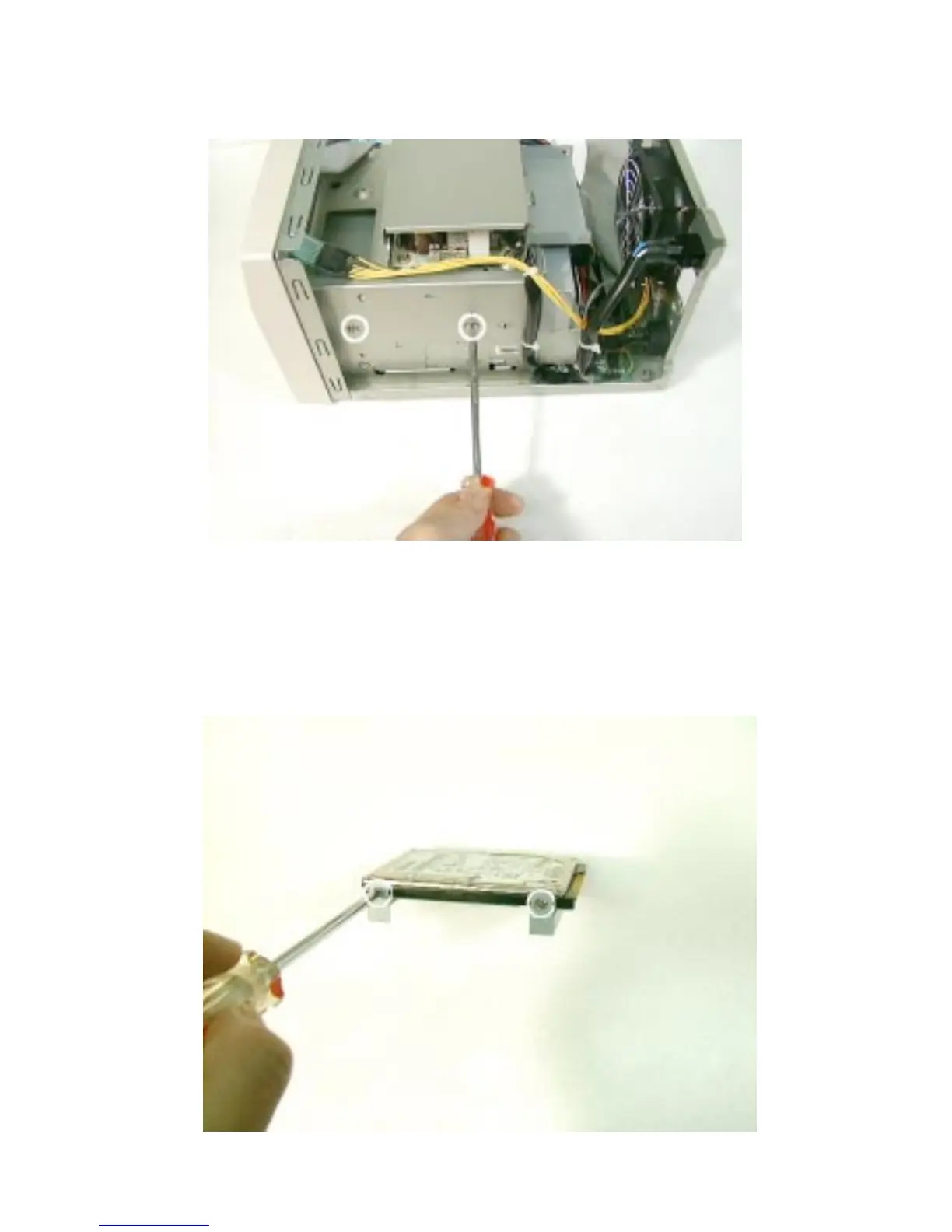

Step 6: Screw up the device from sliding.

2.6 Installation of 2.5” Hard Disk

Step 1: Screw up the 2.5” hard disk with the metal frame.
