ARS-2021/2021S Copy Smart Plus
5.5 Copy Smart Plus DIP switch adjustment
switch 1: turn on is for SCSI ID 4
switch 2: turn on is for SCSI ID 2
switch 3: turn on is for SCSI ID 1
switch 7: turn on is for SCSI termination on
other switches: Reserve

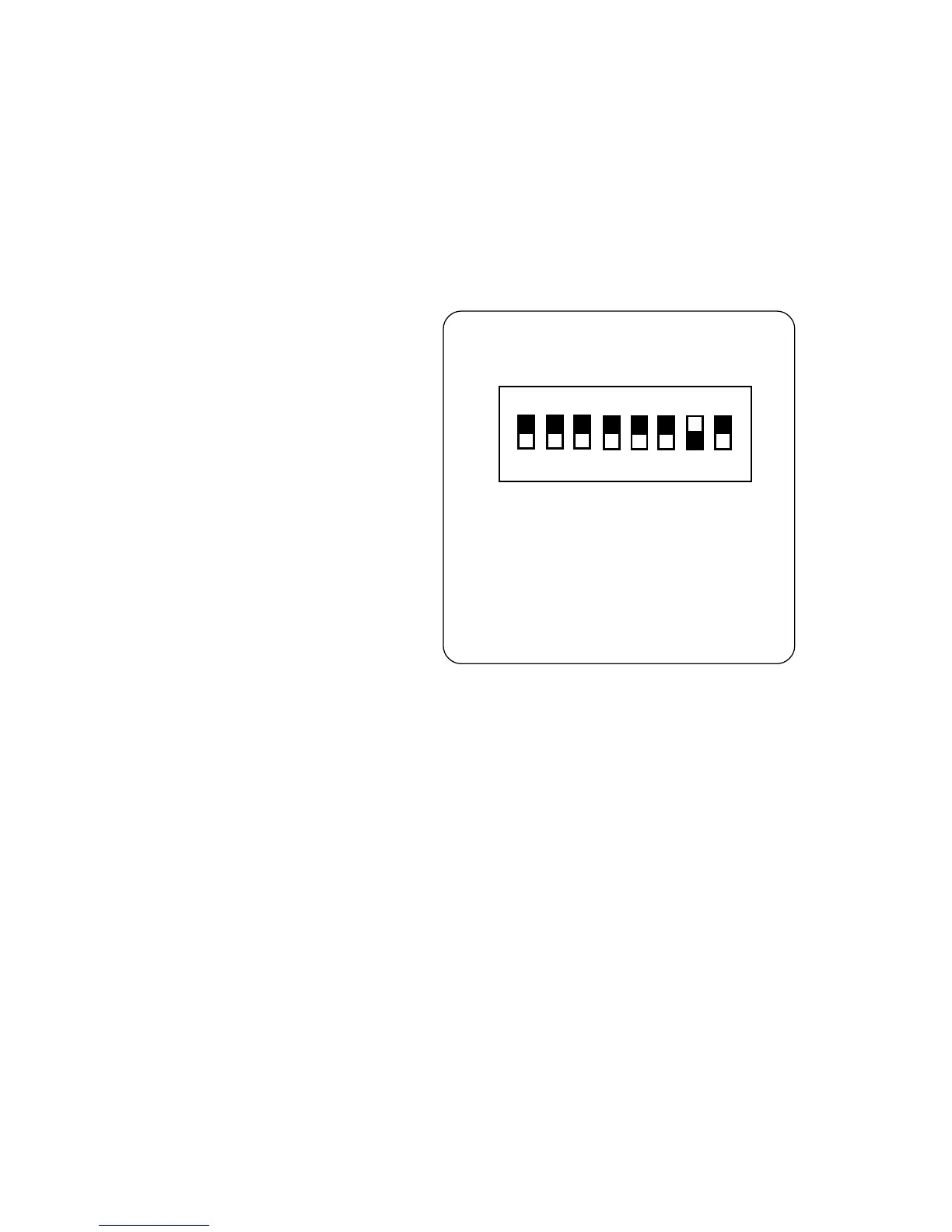

DIP switch adjustment
ON
1 2 3 4 5 6 7 8
1 =====> ON - SCSI ID 4
2 =====> ON - SCSI ID 2
3 =====> ON - SCSI ID 1
7 =====> ON - Terminator ON
4, 5, 6, 8 =====> Reserve
