■ Transmission Chain Check and Adjustment
The chain between two sprockets should have 3 cm clearance.
How to adjust:

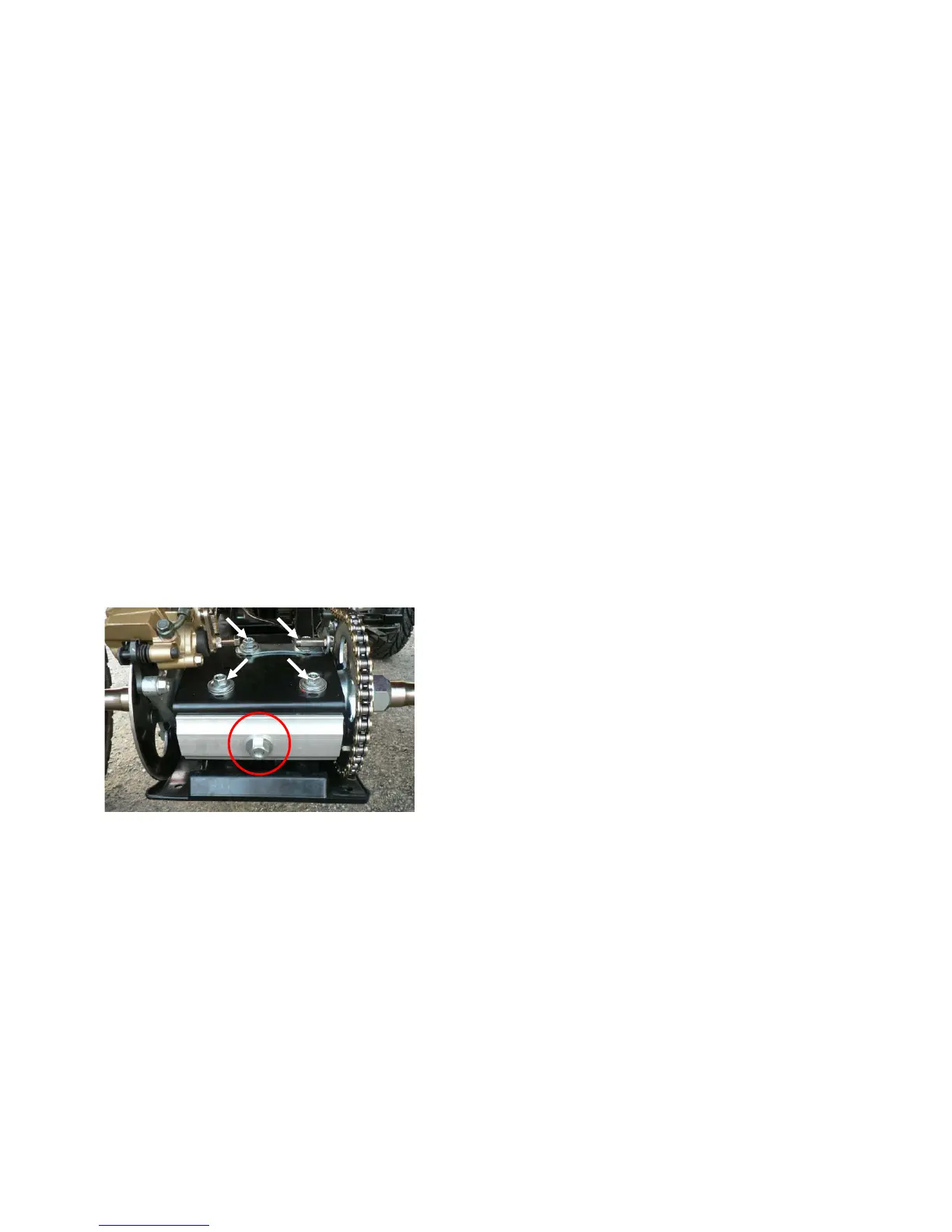

* Loosen the fixing bolt of the rear wheel hub. Use a screwdriver
to hold the rear wheel hub and the ride sprocket so that the ATV
will not move.
* While pushing the ATV forward will loosen the chain, pulling
backward will tighten the chain. Adjust the chain until it has
reached 3 cm clearance for upper and lower chain.
* Tighten the fixing bolt again.
