2

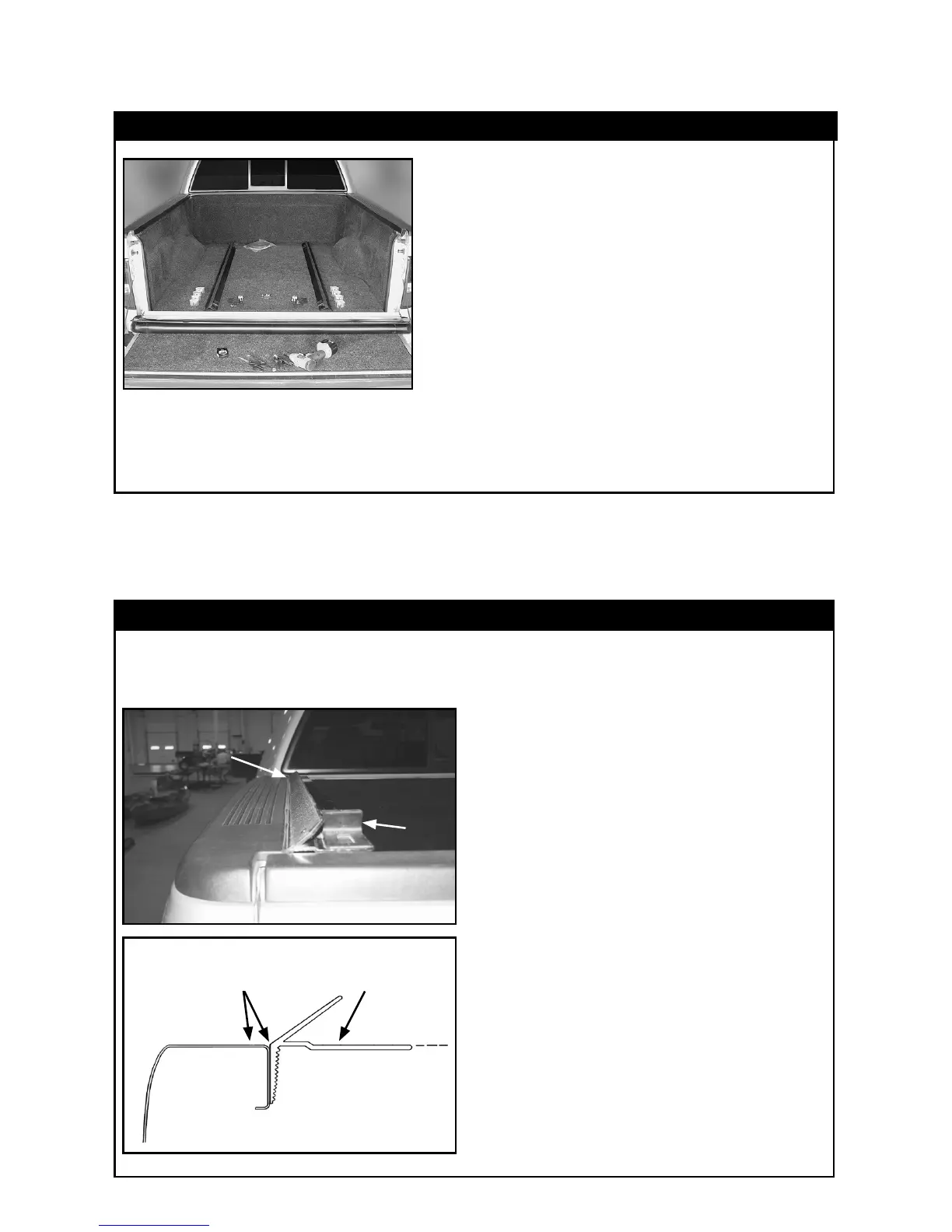

A. Position side rail with weather strip
against inside lip of box. Push rail
forward until it touches front of
box. End of rail with strike goes to
rear.
1. INSTALLING COVER SIDE RAILS
Top of rail should be
ush with top side
of box at front
Nylon
strike
to rear
NOTE ON BED LINERS: With an under-the-rail drop-in bed liner, installation is
possible with minimal trim/cutting of bed liner at front corner of box and back by
tailgate to allow side rail to install properly. Considerable trim/cutting is required
with an over-the-rail drop-in bed liner.
INSTALLATION INSTRUCTIONS:
NOTE: For additional installation assistance go to LORADO.COM for install video.
PREPARATION
This edge of rail ush
with top on side of
box at front
This surface of
the rail should
be level
B. At front, adjust top of rail ush with
top of box and hold it there with as-
sistance of another person or with a
spring clamp.
NOTE: Some installs require drilling/bolting. Those kits will contain special side
rail instructions. Follow those instructions for rail attachment in conjunction with
instructions in this owner’s manual.
Unpack cover components.
Clean truck box if dirty.
COMPONENTS:
1 driver side rail
1 passenger side rail
1 ELEMENT SEAL
TM
kit
6 clamps (long box kits 8 clamps)
1 left and 1 right tension adjuster with nuts & bolts
1 pre-rolled up cover assembly
TOOLS NEEDED:
2 - 1/2” wrenches 1 - Tape measure or ruler
1 - Spring clamp optional Protective eyewear
(to hold rails in place while clamping) 1 - Scissor
