8

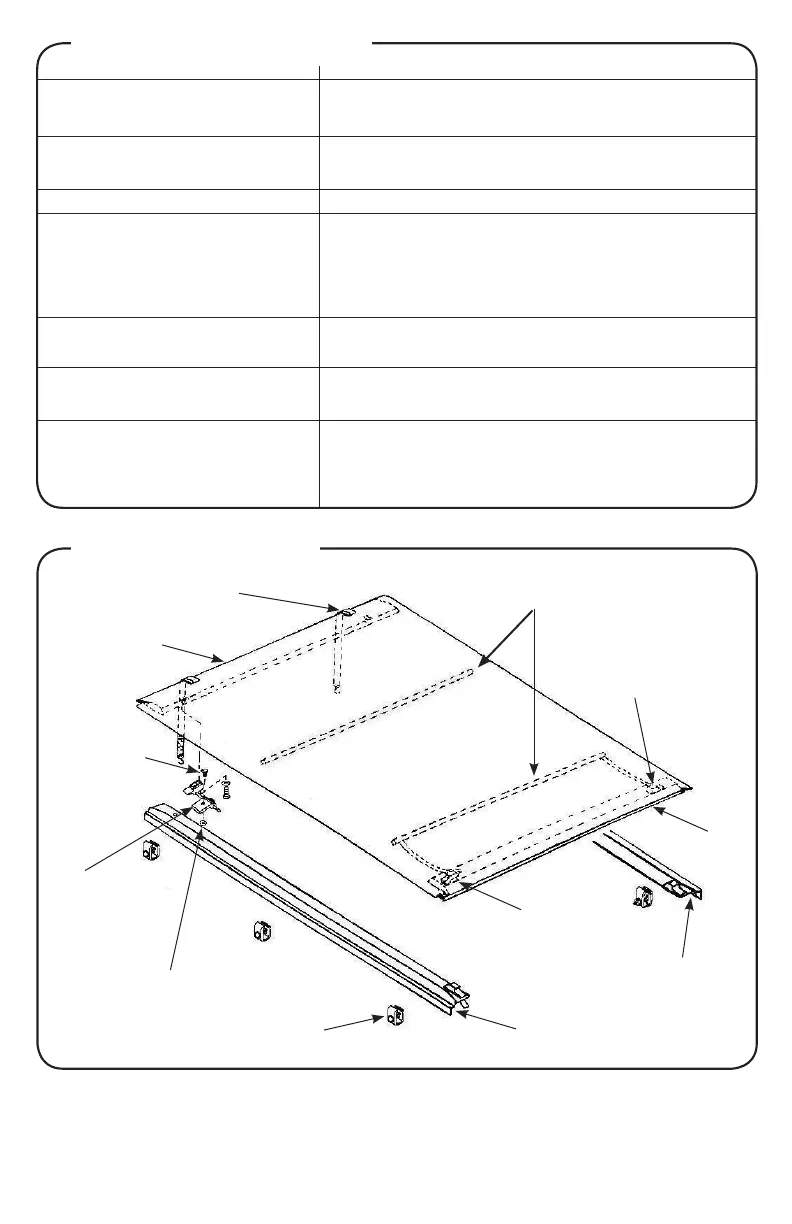

PARTS DIAGRAM
TROUBLESHOOTING
PROBLEM SOLUTION
Cover too loose Turn both tension adjusters counter clockwise to move
front bar forward (Refer to #4C, see arrows next to adjuster)
Cover too tight Turn both tension adjusters clockwise to move front bar
forward (Refer to #4C, see arrows next to adjuster)
Gap between roll-up bar and tailgate Rails set too high (Refer to #4B)
Cover is too wide Check rails. Rails in - too wide - push all clamps to top of
rail
...too narrow Rails out - too narrow - pull all clamps down on rail (Refer
to #1D)
Lopsided cover too much on one side Check front bar. It must be centered side to side (Refer to
#3D)
Top of tailgate hits rear bar when Raise side rails at rear of box until tailgate closes without
attempting to close pushing rear bar up (Refer to #4B)
Manual slide locks too loose or Use 1/8” allen wrench and adjust set screw tighter or too
tight looser as desired. Lock performs best with some friction
3/8” x 3/4” bolt
& nut
(2 per cover)
EZ-Dial left
tension adjuster
3/8” x 1/4” bolt
& washer
(2 per cover)
Front bar
Quick release storage straps
(2 per cover)
Support bows
Slide lock
Rear roll-up
bar
Right rail
passenger side
Side Lock
Left rail
drivers side
Rail clamps
