AccuEnergy EV300 Series User Manual

EV/DV300 Series Power Meter
Chapter 2: Installation
V:2.0 Revised October 2018
10
Chapter 2: Installation

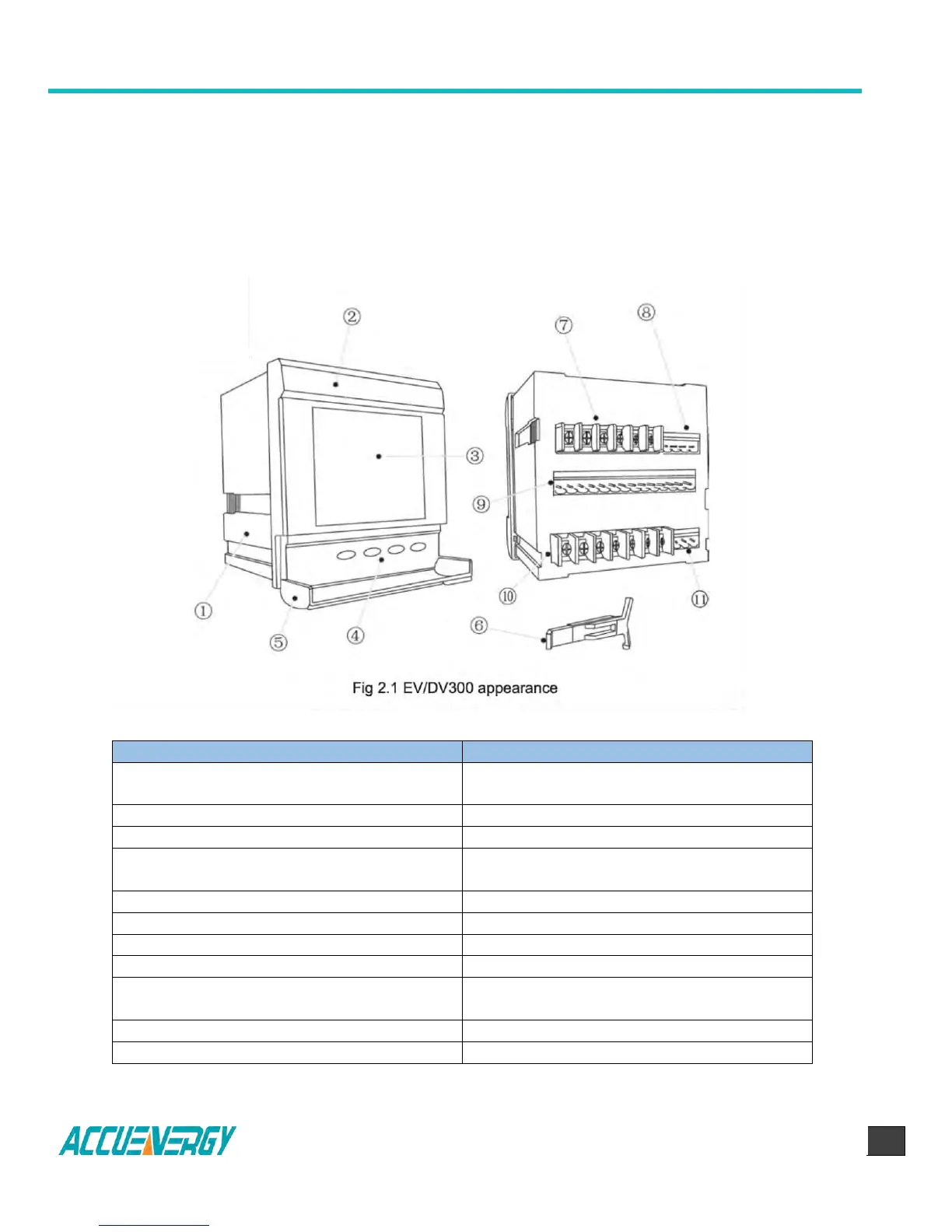

2.1 Appearance and Dimensions
2.1.1 Appearance
Table 2.1 Part Name of Meter
Part Name
Description
1. House
Meter house is made of high Strength
inflaming retarding glass-Polymer
2. Front Panel
Front Part of the meter
3. Display panel
LCD display panel
4. Key
Used to change display and setting the
parameters
5. Key door
Used to protect pressing keys by mistake
6. Clip
Used to fasten the meter on the Electric panel
7. Current input terminal
Terminals for Current signal input
8. Terminal for DI
Terminals for 2 DI (DI1, DI2)
9. Terminal for I/O option
Terminals for 4DI(DI3, DI4, DI5, DI6), 2RO/DO
and 2AO/1PO
10. Voltage Input Terminal
Terminals for Voltage input and power supply
11. Terminal for Comm
Terminals for RS485 port
