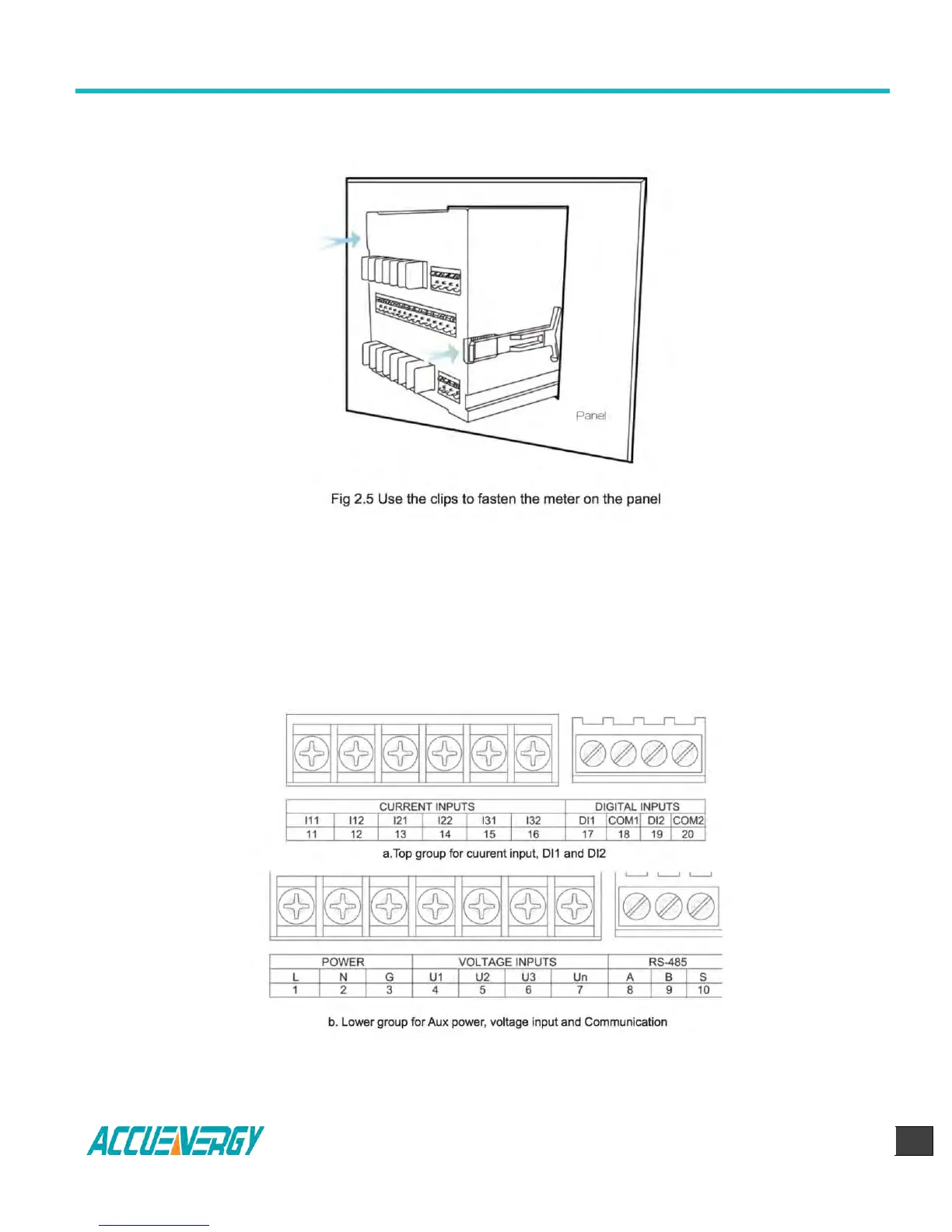

3. Finally, put clips back to the meter from the backside and push the clips tightly so that the
meter is fixed on the panel.
2.3 Wiring
Terminal Strips
There are 3 groups of terminals on the back of the meter, top, middle and lower one. The top
group is for current input and 2 DIs. The middle group is for IO option and the lower group is
for voltage input and communication.
