EV/DV300 Series Power Meter
V:2.0 Revised October 2018

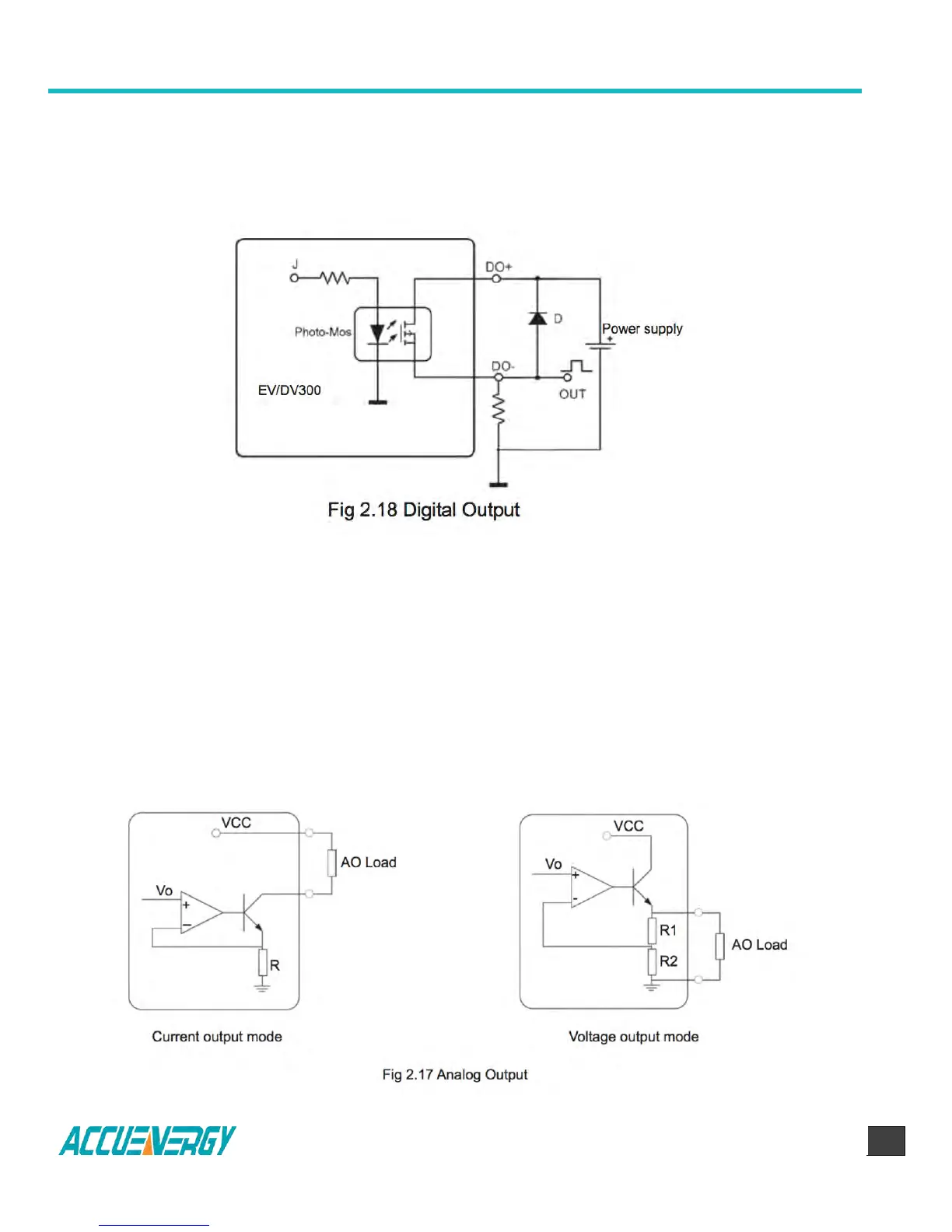

Digital outputs work in an open collector mode with electric coupling, The simplified circuit is
shown as Fig 2.18.
Analog Output
There are two optional analog output in EV/DV300 series meter used in DCS or industry
monitoring system. The analog output can be assigned to a metering parameter over front
keys or communication. Please refer to Chapter 3.
The analog output mode can be anyone of 4~20mA, 0~1mA or 0~5V. The simplified circuit
diagram is as in Fig 2.17. The default is 4~20mA. Other output mode can be selected at
ordering.
