17

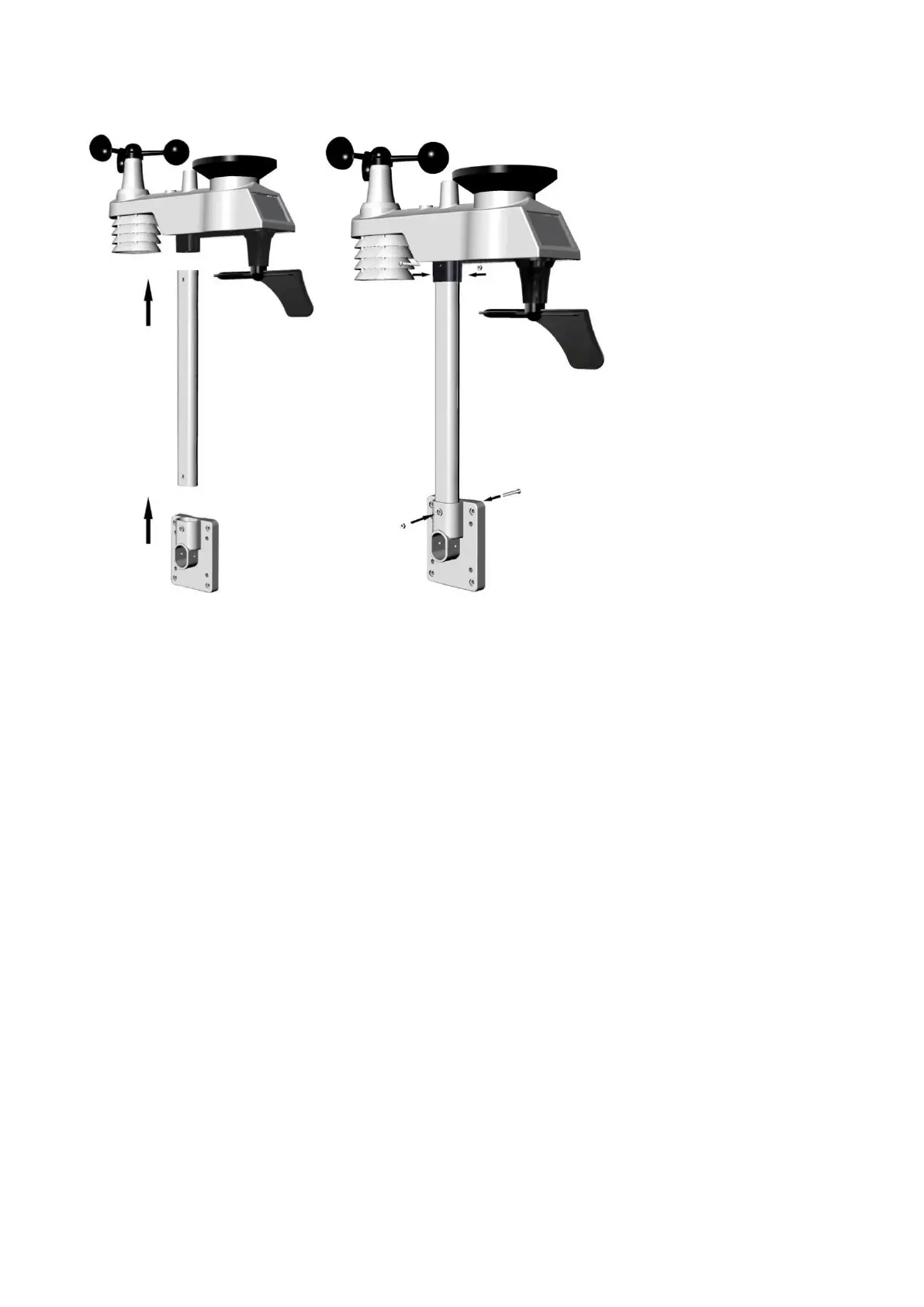

Figure 15
Attach the included mounting pole to your existing mounting pole with the four￠5 bolts and M5 nuts
assembly, or fix on the wall with four tapping screws, as shown in Figure16.
