Accutrol AccuValve AVT6000 - Page 10

Installation & Operation Manual - Model AVT6000
Contents of this Manual are Subject to Change Without Notification Page 10
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
500 1000 1500 2000 2500 3000 3500 4000
Valve DP ("wc)
Max Airflow (CFM)
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
800 1600 2400 3200 4000 4800 5600 6400
Valve DP ("wc)
Max Airflow (CFM)
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
1000 2000 3000 4000 5000 6000 7000 8000
Valve DP ("wc)
Max Airflow (CFM)

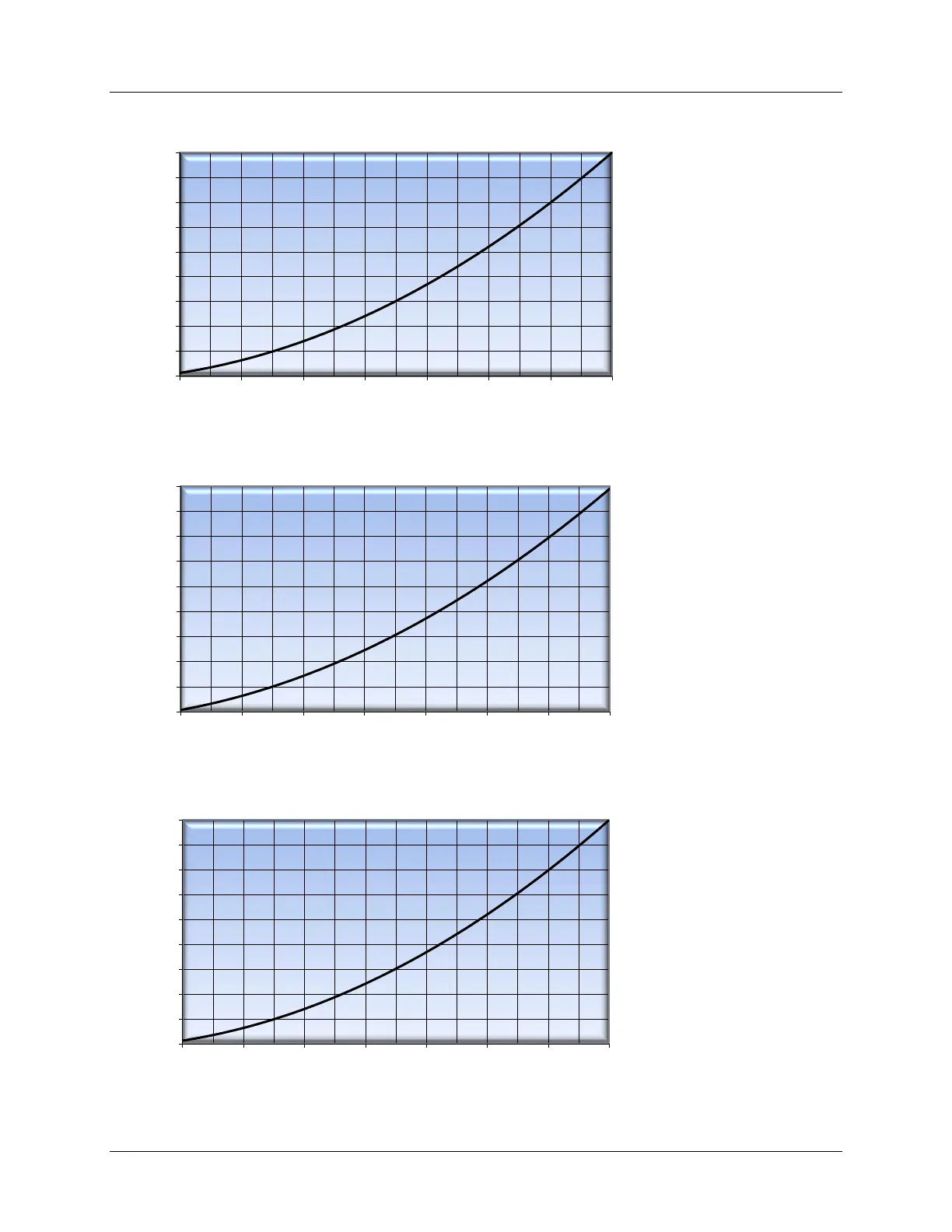

12x24” AccuValve
Operating Range: 0-4000 CFM
Min. Measurement: 350 CFM
12x36” AccuValve
Operating Range: 0-6400 CFM
Min. Measurement: 520 CFM
12x48” AccuValve
Operating Range: 0-8000 CFM
Min. Measurement: 700 CFM
