Accutrol AccuValve AVT6000 - Page 9

Installation & Operation Manual - Model AVT6000
Contents of this Manual are Subject to Change Without Notification Page 9
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
200 400 600 800 1000 1200 1400 1600 1800
Valve DP ("wc)
Max Airflow (CFM)
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
300 600 900 1200 1500 1800 2100 2400 2700
Valve DP ("wc)
Max Airflow (CFM)
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
400 800 1200 1600 2000 2400 2800 3200
Valve DP ("wc)
Airflow (CFM)

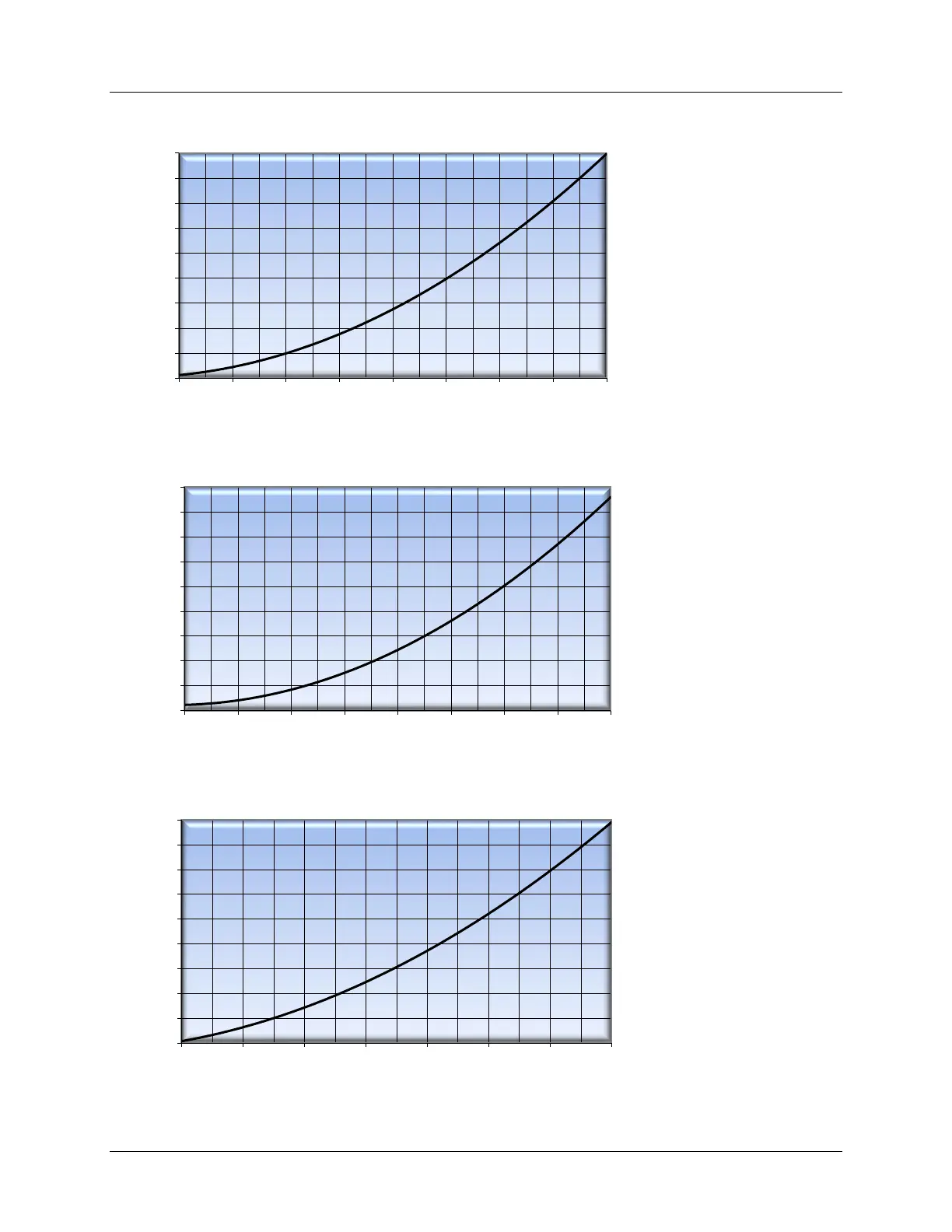

12” AccuValve
Operating Range: 0-1790 CFM
Min. Measurement: 180 CFM
14” AccuValve
Operating Range: 0-2750 CFM
Min. Measurement: 250 CFM
12x18” AccuValve
Operating Range: 0-3200 CFM
Min. Measurement: 260 CFM
