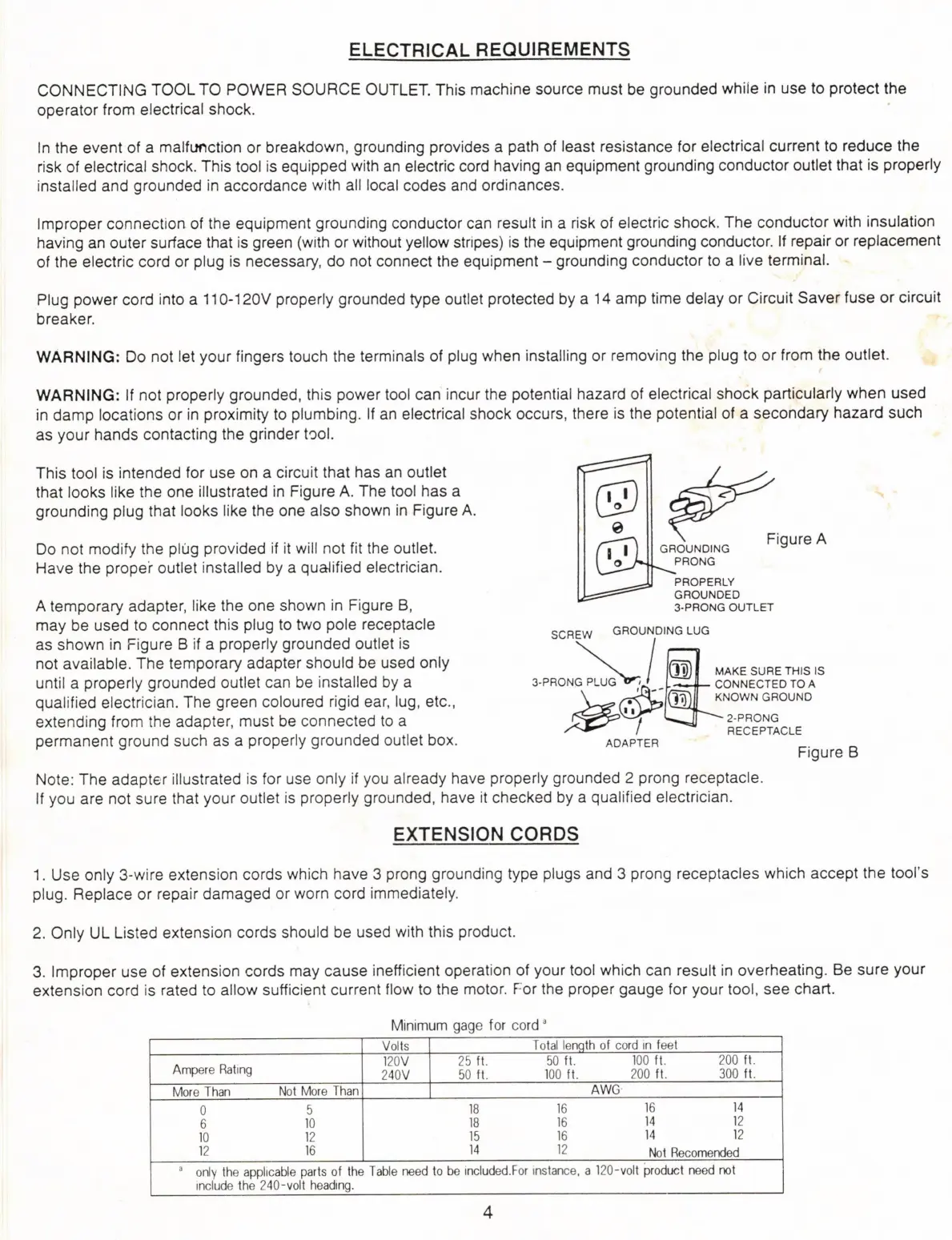

ELECTRICAL REQUIREMENTS
CONNECTING TOOL TO POWER SOURCE OUTLET. This machine source must be grounded while in use to protect the
operator from electrical shock.
In the event of a malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the
risk of electrical shock. This tool is equipped with an electric cord having an equipment grounding conductor outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
Improper connection of the equipment grounding conductor can result in a risk of electric shock. The conductor with insulation
having an outer surface that is green (with or without yellow stripes) is the equipment grounding conductor. If repair or replacement
of the electric cord or plug is necessary, do not connect the equipment — grounding conductor to a live terminal.
Plug power cord into a 110-120V properly grounded type outlet protected by a 14 amp time delay or Circuit Saver fuse or circuit
breaker.
WARNING:
Do
not
let
your
fingers
touch
the
terminals
of
plug
when
installing
or
removing
the
plug
to
or
from
the
outlet.
WARNING: If not properly grounded, this power tool can incur the potential hazard of electrical shock particularly when used
in damp locations or in proximity to plumbing. If an electrical shock occurs, there is the potential of a secondary hazard such
as your hands contacting the grinder tool.
This tool is intended for use on a circuit that has an outlet ae
that looks like the one illustrated in Figure A. The tool has a
grounding plug that looks like the one also shown in Figure A.
@ :
Do not modify the plug provided if it will not fit the outlet. 1,4) GROUNDING Figure A
Have the proper outlet installed by a qualified electrician. | Bhai
PROPERLY
; — GROUNDED
A temporary adapter, like the one shown in Figure B, al 3-PRONG OUTLET
may be used to connect this plug to two pole receptacle
as shown in Figure B if a properly grounded outlet is
not available. The temporary adapter should be used only
SCREW GROUNDING LUG
MAKE SURE THIS IS
until a properly grounded outlet can be installed by a 3-PRONG PLUG O71 _ CONNECTED TOA
qualified
electrician.
The
green
coloured
rigid
ear,
lug,
etc.,
ab
KNOWN
GROUND
extending
from
the
adapter,
must
be
connected
to
a
/
2-PRONG
RECEPTACLE
permanent ground such as a properly grounded outlet box. ADAPTER
Figure B
Note: The adapter illustrated is for use only if you already have properly grounded 2 prong receptacle.
If you are not sure that your outlet is properly grounded, have it checked by a qualified electrician.
EXTENSION CORDS
1. Use only 3-wire extension cords which have 3 prong grounding type plugs and 3 prong receptacles which accept the tool's
plug. Replace or repair damaged or worn cord immediately.
2. Only UL Listed extension cords should be used with this product.
3. Improper use of extension cords may cause inefficient operation of your tool which can result in overheating. Be sure your
extension cord is rated to allow sufficient current flow to the motor. For the proper gauge for your tool, see chart.
Minimum gage for cord °
Total length of cord in feet
29 ft. 50 ft. 100 ft. 200 ft.
50 ft. 100 ft. 200 ft. 300 ft.
Not Recomended
* only the applicable parts of the Table need to be included.For instance, a 120-volt product need not
include the 240-volt heading.
