Switch
The
switch
is
located
on
the
front
of
the
grinder
near
the
bottom.
To
turn
the
tool
"ON"depress
the
rocker
switch
at
the
top
near
the
word
"ON."To
turn
the
tool
"OFF"
depress
the
bottom
portion
of
the
rocker
switch,
near
the
word"
OFF."

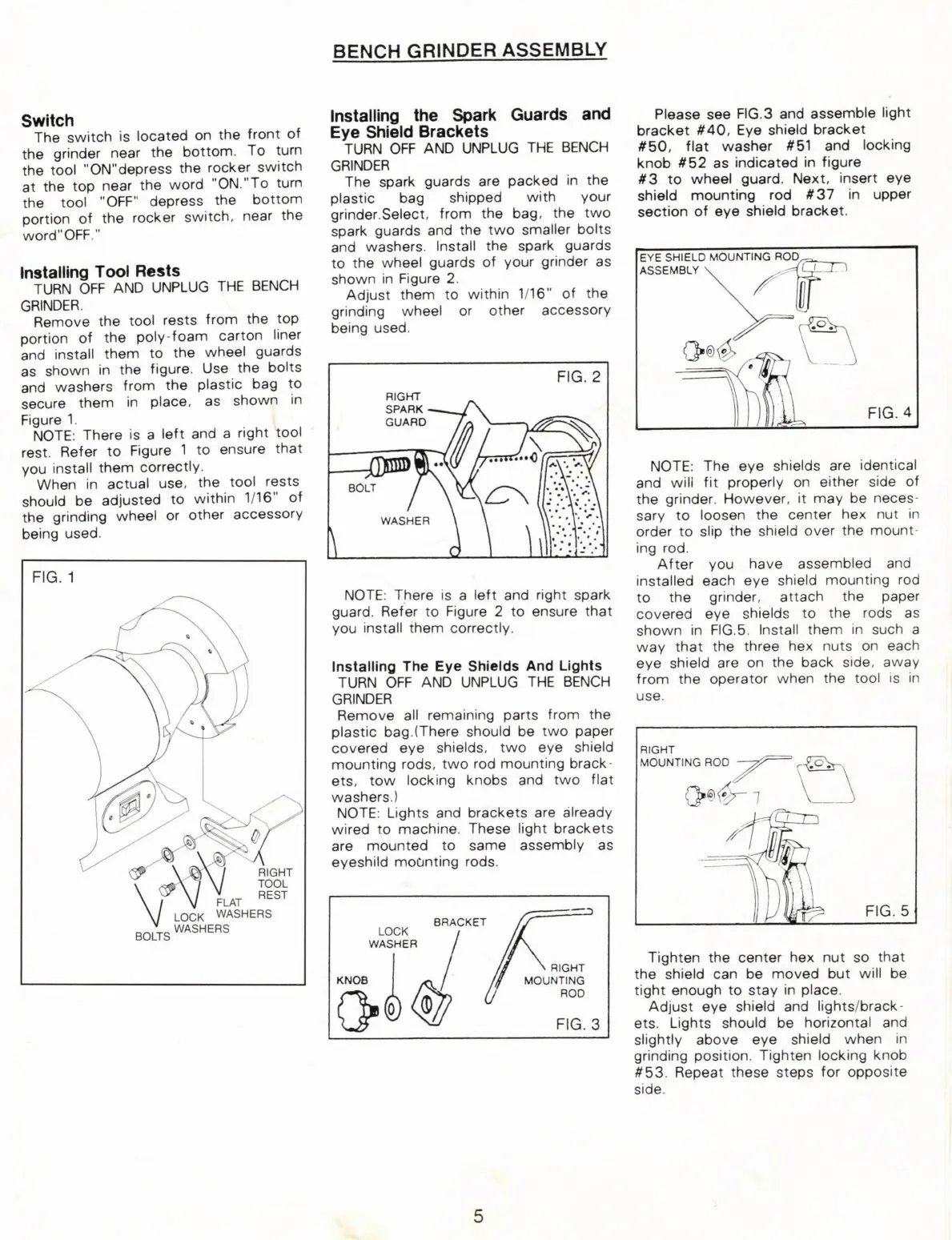

installing
Tool
Rests
TURN
OFF
AND
UNPLUG
THE
BENCH
GRINDER.
Remove
the
tool
rests
from
the
top
portion
of
the
poly-foam
carton
liner
and
install
them
to
the
wheel
guards
as
shown
in
the
figure.
Use
the
bolts
and
washers
from
the
plastic
bag
to
secure
them
in
place,
as
shown
in
Figure
1.
NOTE:
There
is
a
left
and
a
right
tool
rest.
Refer
to
Figure
1
to
ensure
that
you
install
them
correctly.
When
in
actual
use,
the
tool
rests
should
be
adjusted
to
within
1/16"
of
the
grinding
wheel
or
other
accessory
being
used.
Lock
WASHERS
WASHERS
BENCH
GRINDER
ASSEMBLY
Installing
the
Spark
Guards
and
Eye
Shield
Brackets
TURN
OFF
AND
UNPLUG
THE
BENCH
GRINDER
The
spark
guards
are
packed
in
the
plastic
bag
shipped
with
your
grinder.Select,
from
the
bag,
the
two
spark
guards
and
the
two
smaller
bolts
and
washers.
Install
the
spark
guards
to
the
wheel
guards
of
your
grinder
as
shown
in
Figure
2.
Adjust
them
to
within
1/16"
of
the
grinding
wheel
or
other
accessory
being
used.
WASHER
NOTE:
There
is
a
left
and
right
spark
guard.
Refer
to
Figure
2
to
ensure
that
you
install
them
correctly.
Installing
The
Eye
Shields
And
Lights
TURN
OFF
AND
UNPLUG
THE
BENCH
GRINDER
Remove
all
remaining
parts
from
the
plastic
bag.(There
should
be
two
paper
covered
eye
shields,
two
eye
shield
mounting
rods,
two
rod
mounting
brack-
ets,
tow
locking
knobs
and
two
flat
washers.)
NOTE:
Lights
and
brackets
are
already
wired
to
machine.
These
light
brackets
are
mounted
to
same
assembly
as
eyeshild
mounting
rods.
BRACKET
LOCK
WASHER
RIGHT
MOUNTING
ROD
FIG.
3
KNOB
>
Please
see
FIG.3
and
assemble
light
bracket
#40,
Eye
shield
bracket
#50,
flat
washer
#51
and
locking
knob
#52
as
indicated
in
figure
#3
to
wheel
guard.
Next,
insert
eye
in
upper
shield
mounting
rod
#37
section
of
eye
shield
bracket.
EYE
SHIELD
MOUNTING
RO
ASSEMBLY
NOTE:
The
eye
shields
are
identical
and
wili
fit
properly
on
either
side
of
the
grinder.
However,
it
may
be
neces-
sary
to
loosen
the
center
hex
nut
in
order
to
slip
the
shield
over
the
mount-
ing
rod.
After
you
have
assembled
and
installed
each
eye
shield
mounting
rod
to
the
grinder,
attach
the
paper
covered
eye
shields
to
the
rods
as
shown
in
FIG.5.
Install
them
in
such
a
way
that
the
three
hex
nuts
on
each
eye
shield
are
on
the
back
side,
away
from
the
operator
when
the
tool
is
in
use.
RIGHT
MOUNTING
ROD
ie
<a
tos
oe
7
\_)
Tighten
the
center
hex
nut
so
that
the
shield
can
be
moved
but
will
be
tight
enough
to
stay
in
place.
Adjust
eye
shield
and
lights/brack-
ets.
Lights
should
be
horizontal
and
slightly
above
eye
shield
when
in
grinding
position.
Tighten
locking
Knob
#53.
Repeat
these
steps
for
opposite
side.
