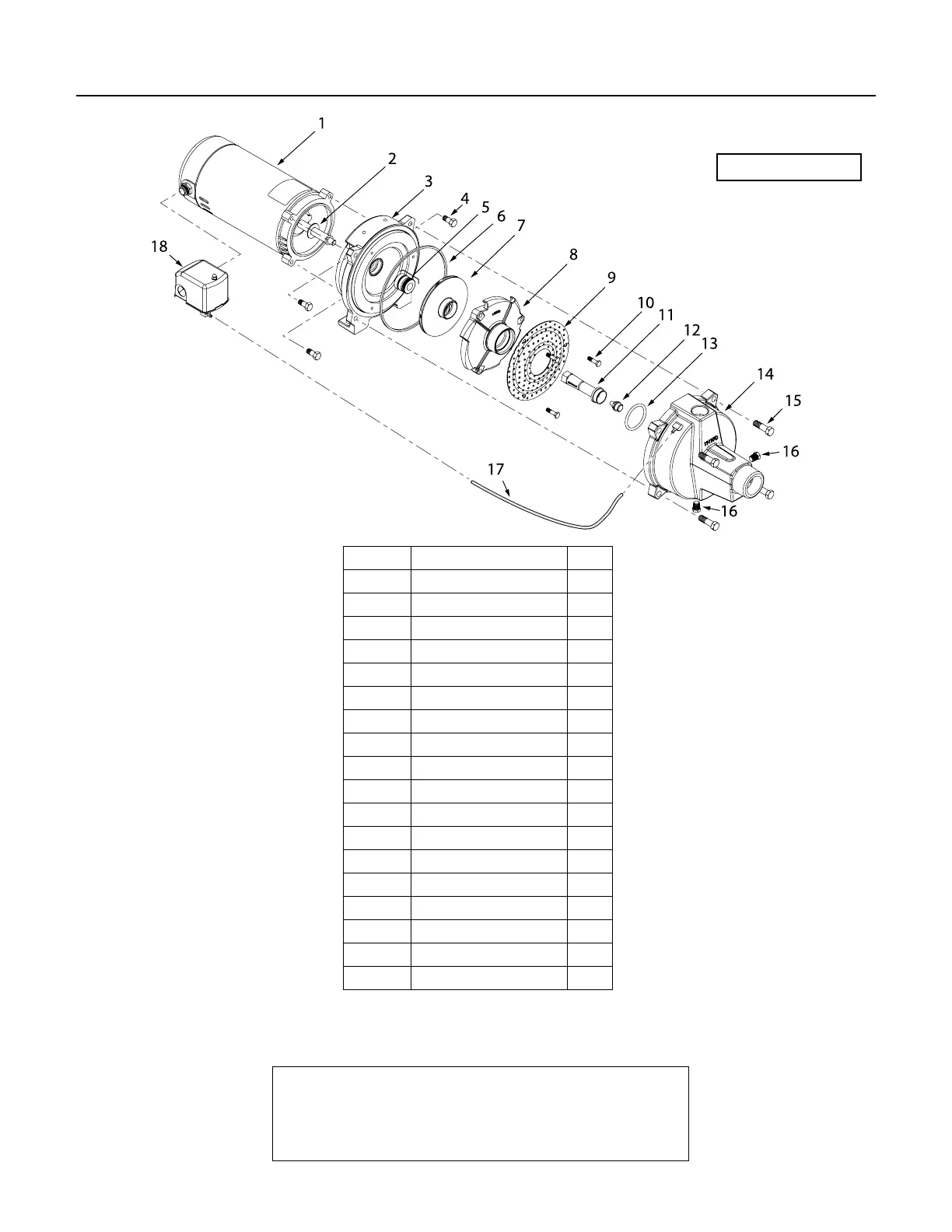

Parts Breakdown 12
Model ACE10S
Key No. Part Description Qty.
1 Motor 1
2 Slinger 1
3 Seal Plate 1
4 Motor Flange Screw* 4
5 Shaft Seal 1
6 Seal Plate Gasket* 1
7 Impeller* 1
8 Diffuser* 1
9 Diffuser Plate 1
10 Diffuser Plate Screw*
†
3
11 Venturi 1
12 Nozzle 1
13 Diffuser Plate O-Ring 1
14 Pump Body 1
15 Pump Housing Screw
†
4
16 Pipe Plug 2
17 Tubing 1
18 Pressure switch 1
Part ACE10S
Description 1 HP
Overhaul Kit FPPKS100
Kit Includes: Key Nos. 5, 6, 7, 8, 11, 12
**Purchase separately—kit is not included with pump.
*Included in Overhaul Kit
†
Purchase at local hardware store.
REPAIR PARTS KIT**
