Chapter 3 85

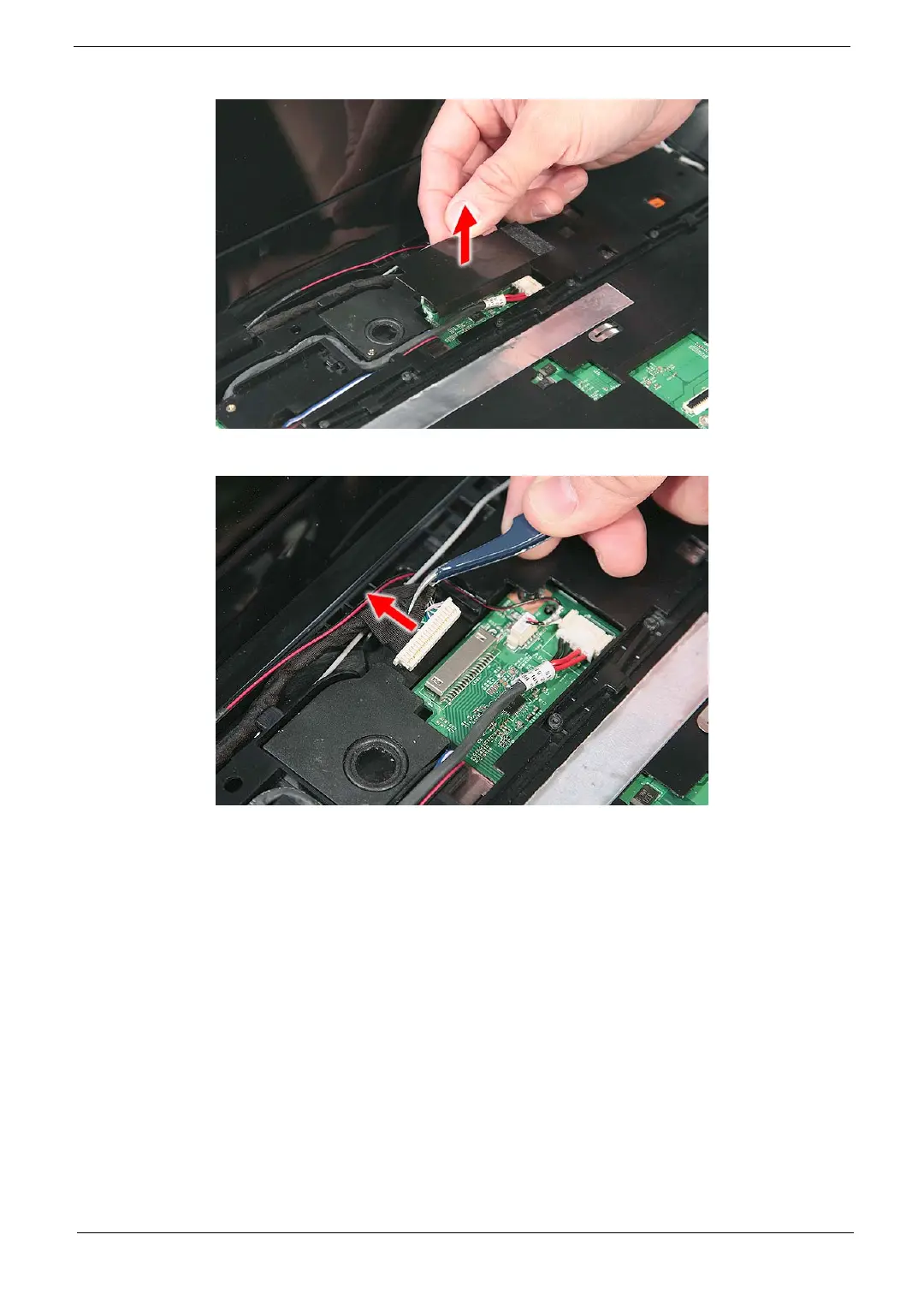

10. Turn over the system and remove the mylar covering the LCD cable connector.

11. Disconnect the LCD cable connector from the main board.
