86 Chapter 3

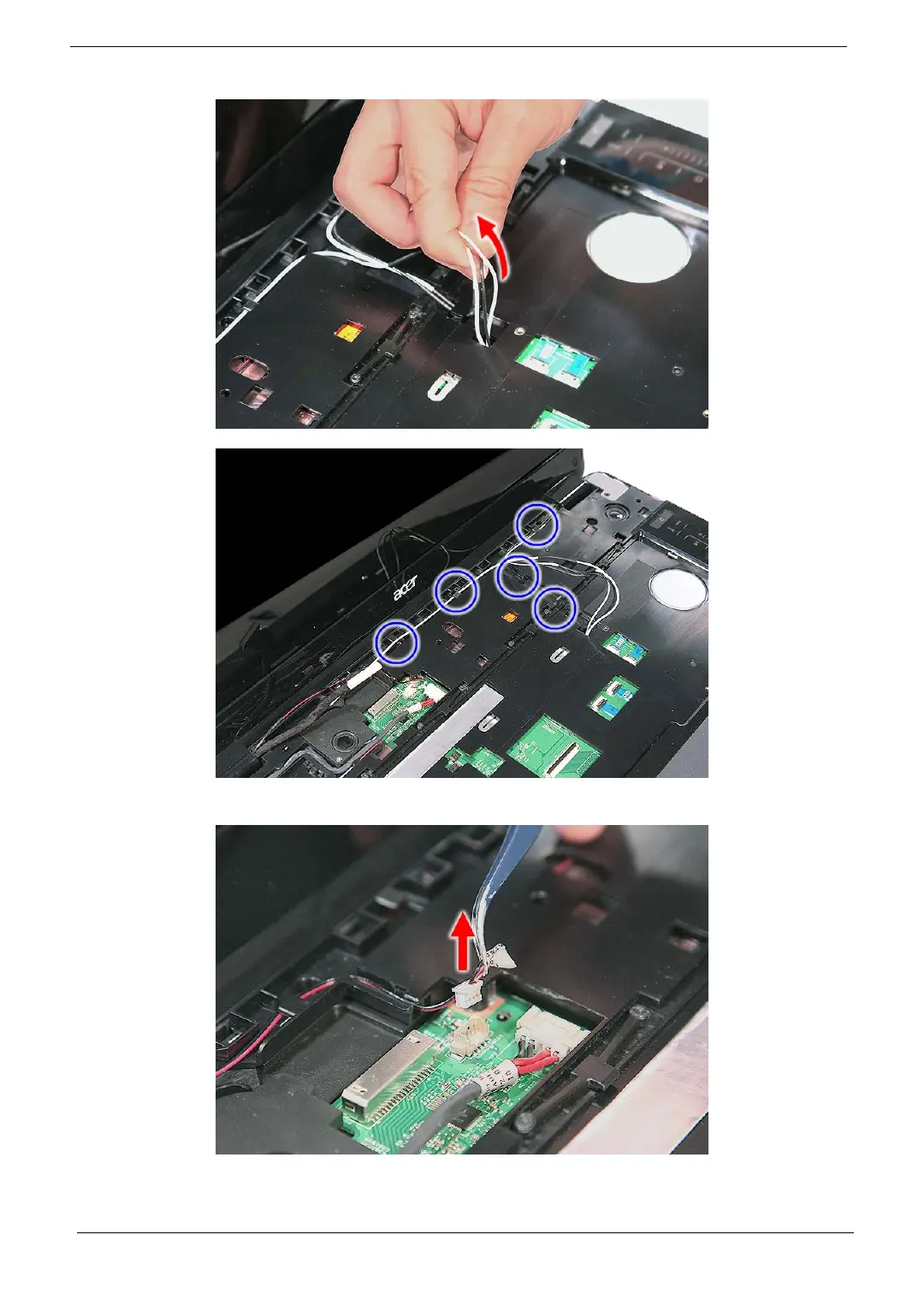

12. Carefully pull out the wireless antenna cables from the hole and release the cables from the latches.

13. Disconnect the microphone cable from MIC1 on the system and release it from the latches.
