Chapter 3 91

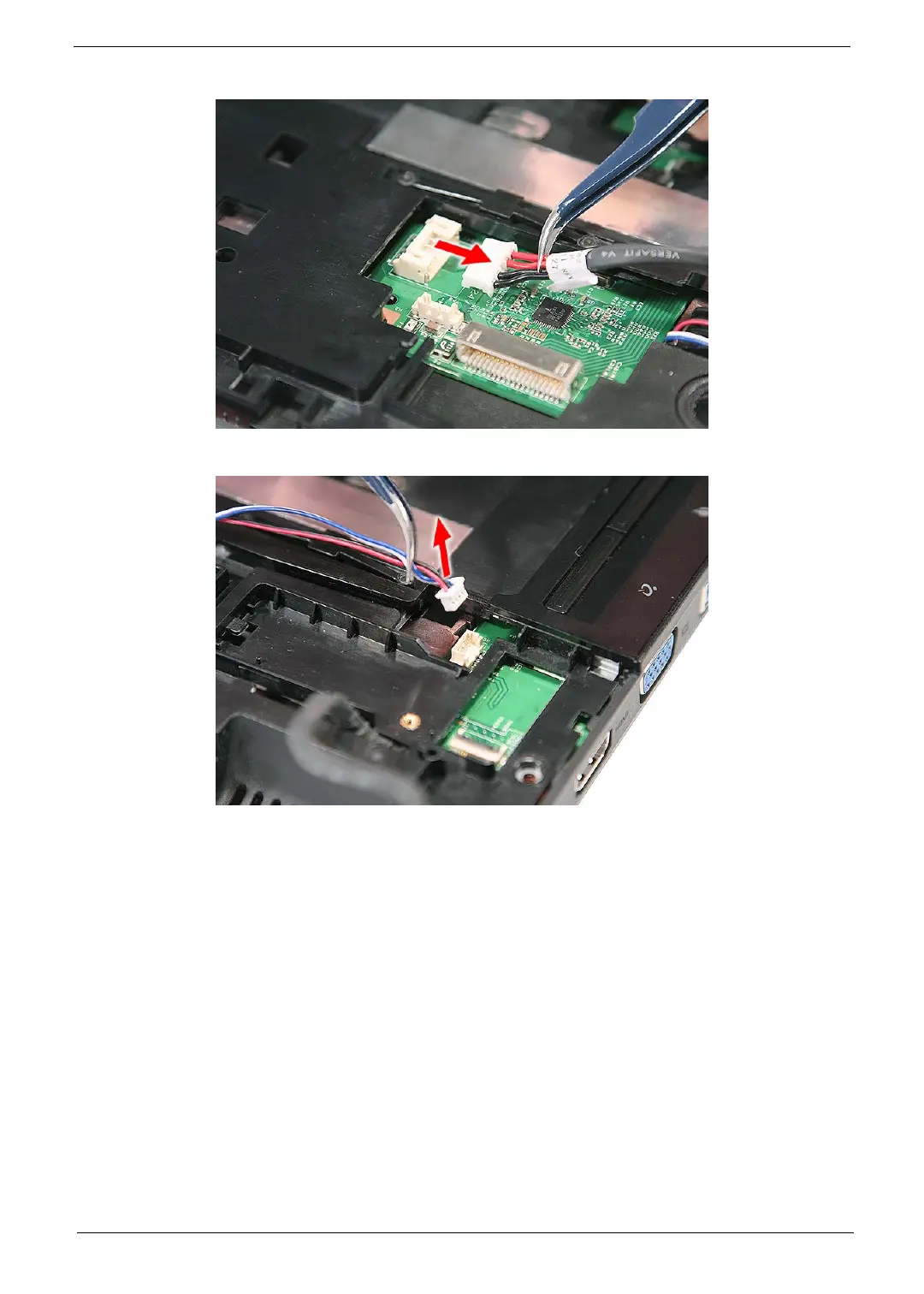

20. Disconnect the power cable from DC1 connector on the main board.

21. Disconnect the speaker cable from REAR1 connector on the main board.
