Service and Maintenance 5-121
WLAN Antenna (Aux) Removal
Prerequisite:
LCD Panel Brackets Removal on page 5-114
1. Detach the mylar securing the auxiliary antenna cable and eDP cable. Then unroute the eDP
cable from the guides on the top side of the LCD cover.

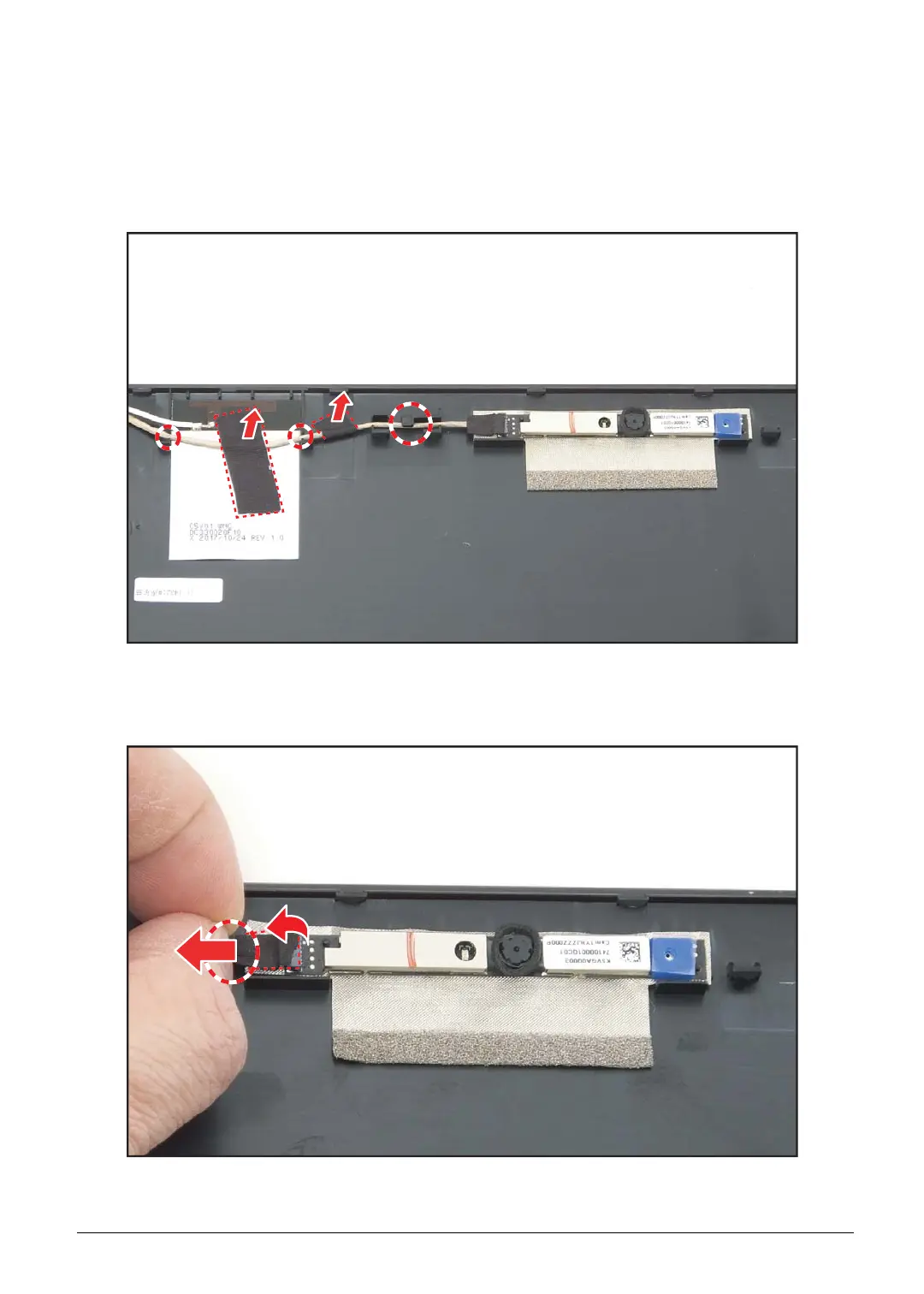

Figure 5-189. Unrouting the Mylars
2. Detach the mylar and disconnect the eDP cable from the CMOS and microphone module
connector.
Figure 5-190. Disconnecting the eDP Cable
