Acer AL1516 - Main Board Layout

15

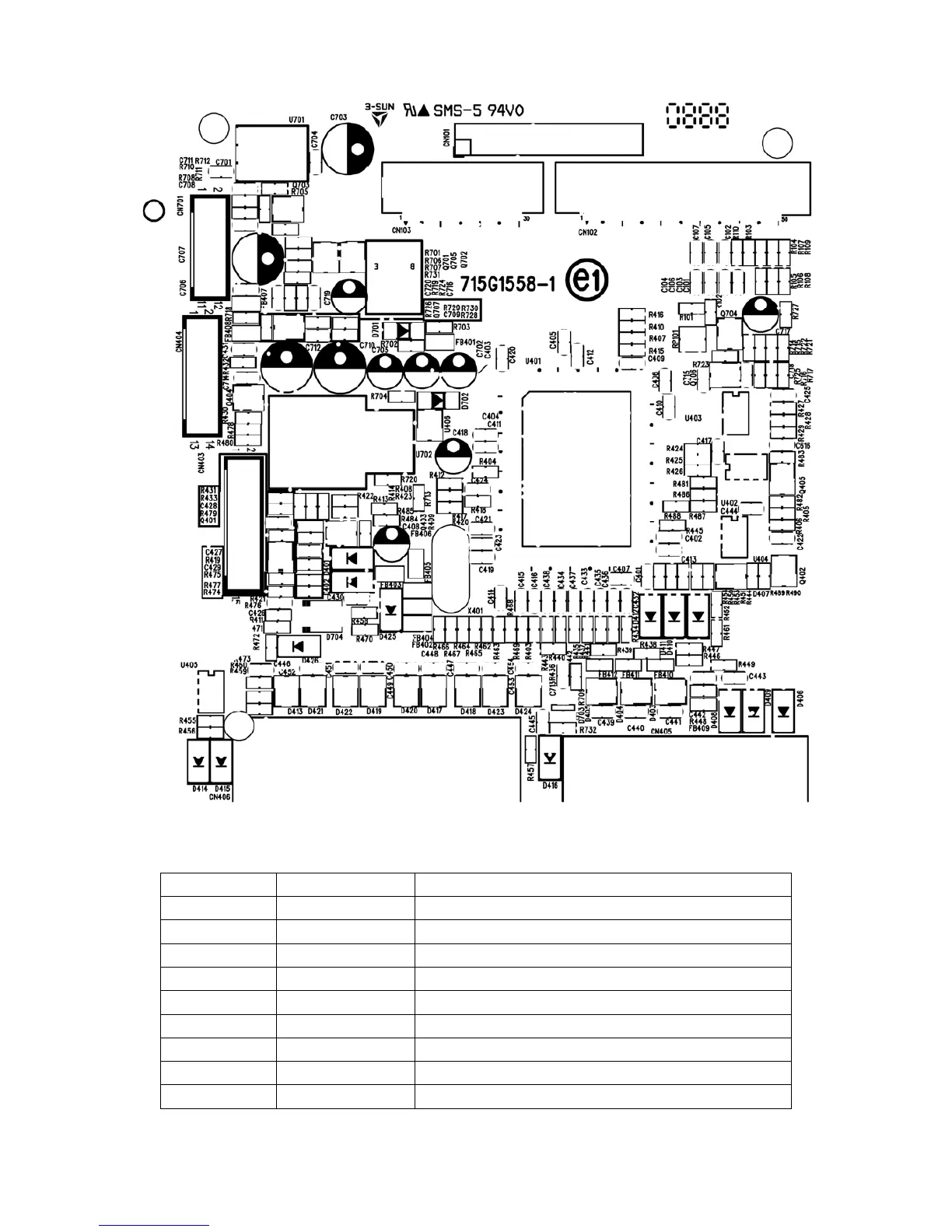

Main Board Layout
Label Part NO Description
CN405 088G 35315F H D-SUB 15PIN
CN101 033G8027 14 H WAFER
U401 056G 562100 TSUM16AK
X401 093G 22 53 CRYSTAL 14.318MHzHC-49US
U402 056G1133 74 SST25VF010A-33-4C-SAE
U403 056G113356A 24LC16B/SNG SOIC-8PIN
U404 056G113334A 24LC02B/SNG SOIC-8PIN
U702 056G 563 21 AP1084K33LA
U701 056G 585 4 AIC1117-33CY
