27

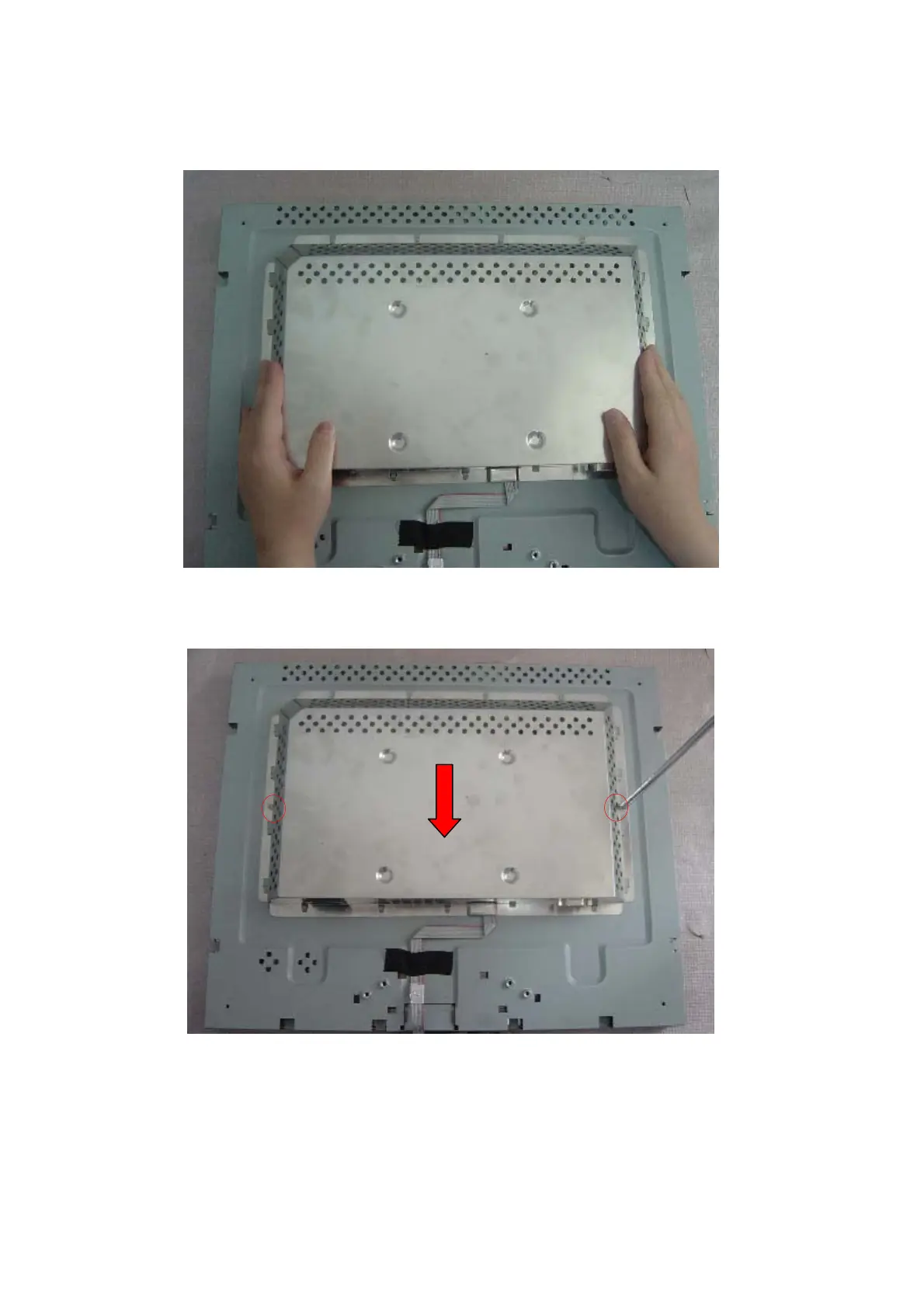

Disassemble the shield
Remove two screws to remove the shield. (Fig 5)
(Remove the shield as arrow direction).
Fig 5
