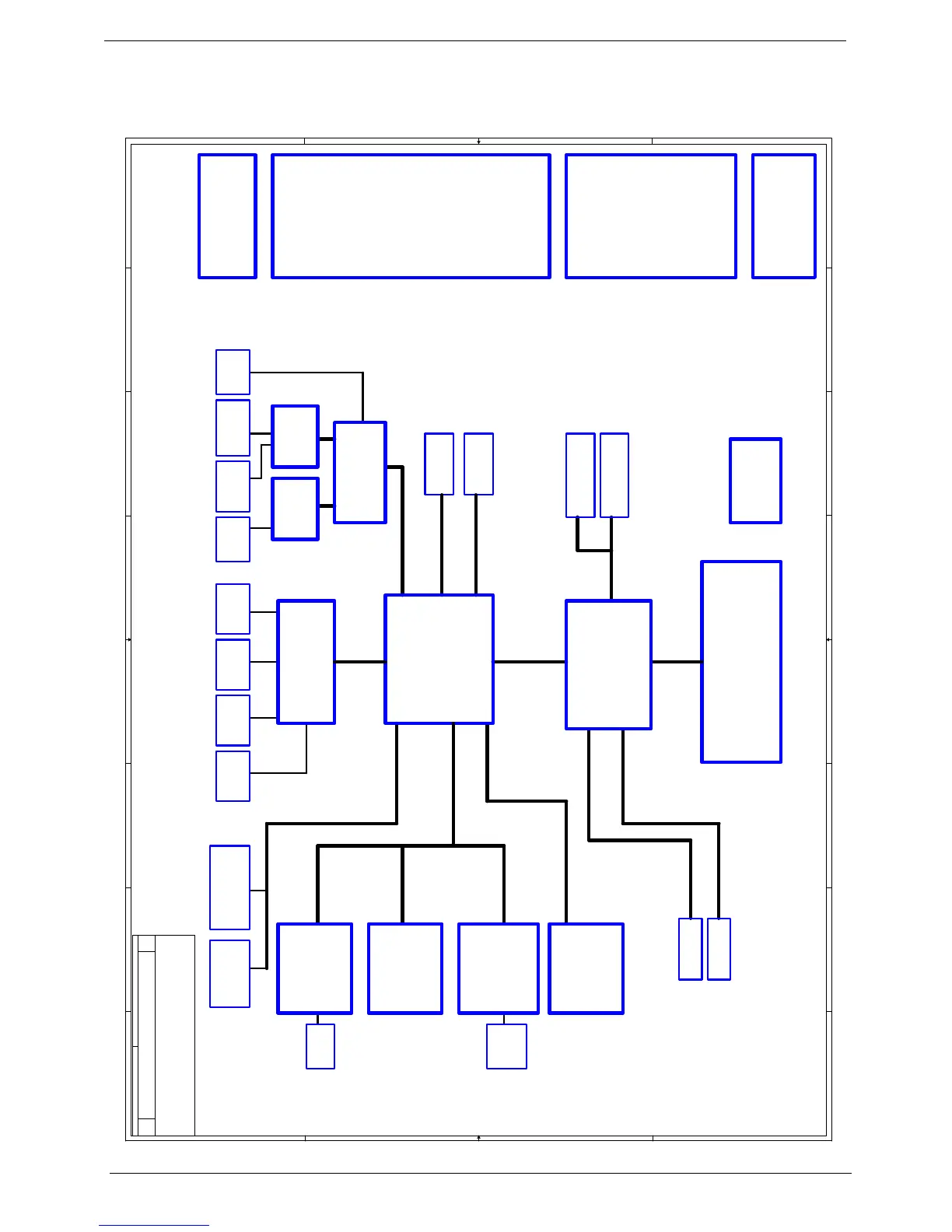

System Block Diagram
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
A A B B C C D D
INTEL Mobile_479 CPU
DDR-II
ATA 66/100
HD Audio
AUDIO CODEC
DDR-II SODIMM1 DDR-II SODIMM2
IDE-ODD
PATA HDD
ATA 66/100
RJ11
Page: 19
Page: 16 Page: 16
Page: 10
CLOCK GEN ICS954206
Page:2, 3
Page: 5, 6 , 7, 8
Page: 12 , 13 , 14
Page:4
LINE OUT
INTEL ALVISO 915GM
NB
SB
DMI I/F
Page: 21
Page: 22Page: 22
Touchpad
KBC NS PC97551
Keyboard
INTEL ICH6-M
CELERON-M/PENTIUM-M
PCI BUS 33MHZ
RJ45
REALTEK RTL8100CL
USB 2.0
Page: 18
Page: 17
MINI-PCI Wireless LAN
Realtek
Page: 20
ALC260 (ALC883)
SPEAKER
HOST BUS 533/400MHZ
LPC 33MHZ
TI PCMCIA PCI1510A ( L-F )
+1.8VSUS +1.8V
TM4060/AS1640(ZL8 for Quanta project code)
REQ2# / GNT2# REQ1# / GNT1# AD20 AD17 INTB# , INTD# INTC#
Page: 10
Page: 21
FLASH
Page: 22
FAN
CPU CORE
CRT Page: 11
RGB
LVDS Page: 11
LVDS
BATTERY CHARGER
TYPE II SLOT Page: 18
MIC IN
+1.05V +2.5V
Bluetooth USB interface
USB4
Page:16
USB2,3,5
SYSTEM USB PORT *3
MODEMAMP
MAX9755
AD24 REQ0# / GNT0# INTA#
Page: 16
MINI-PCIE slot Wireless LAN
(Option)
PCI-E BUS
Page:23
SENTECH SC451ITSTR
SYSTEM 3V/5V
MAXIM MAX1999
Page:24
+1.5V
SENTECH SC1470 SI9183-AD
+1.5V_S5
SENTECH SC1565 SENTECH SC4215
Page:25
MAXIM MAX8724
Page:26
Page: 16
Page: 17
Page:16
Page: 19
Page: 19 Page: 20 Page: 20 Page: 17
+3VPCU +3V_S5/+3VSUS +3V +5VPCU +5VSUS +5V +15V
ON NCP5214
+0.9VSUS +0.9V
BLOCK DIAGRAM
3A
126Tuesday, August 09, 2005
Size Document Number Rev Date: Sheet
of
Acer Incorporated
PROJECT:Lugano II
