Chapter 3 103
Replacing the LCD Panel

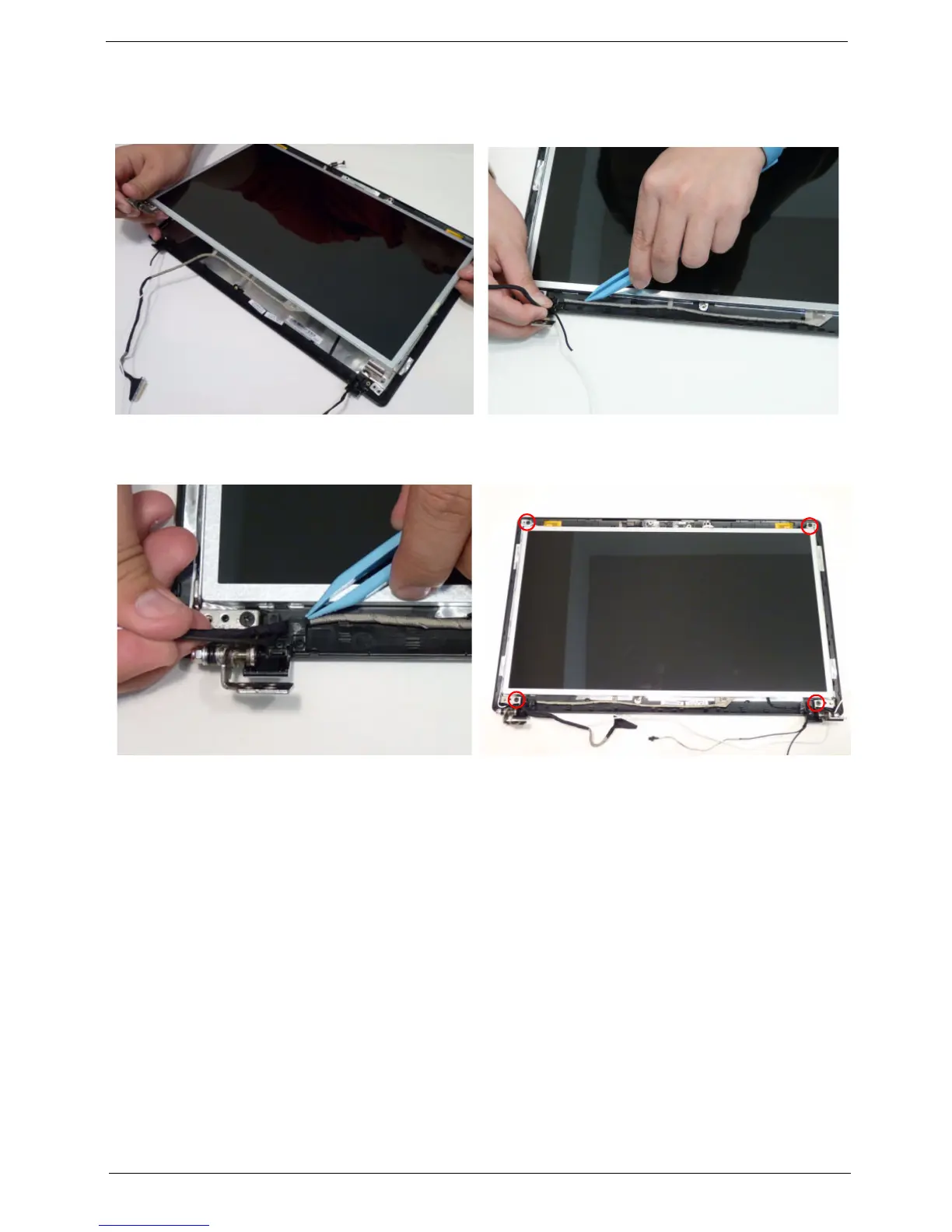

1. Place the LCD Panel in the module as shown. 2. Run the cable along the channel in the LCD
Module as shown.
3. Run the cable through the left hinge channel. 4. Secure the panel using four (4) securing screws.
