Removing the Thermal Module
1. See “Removing the Upper Cover” on page 61.

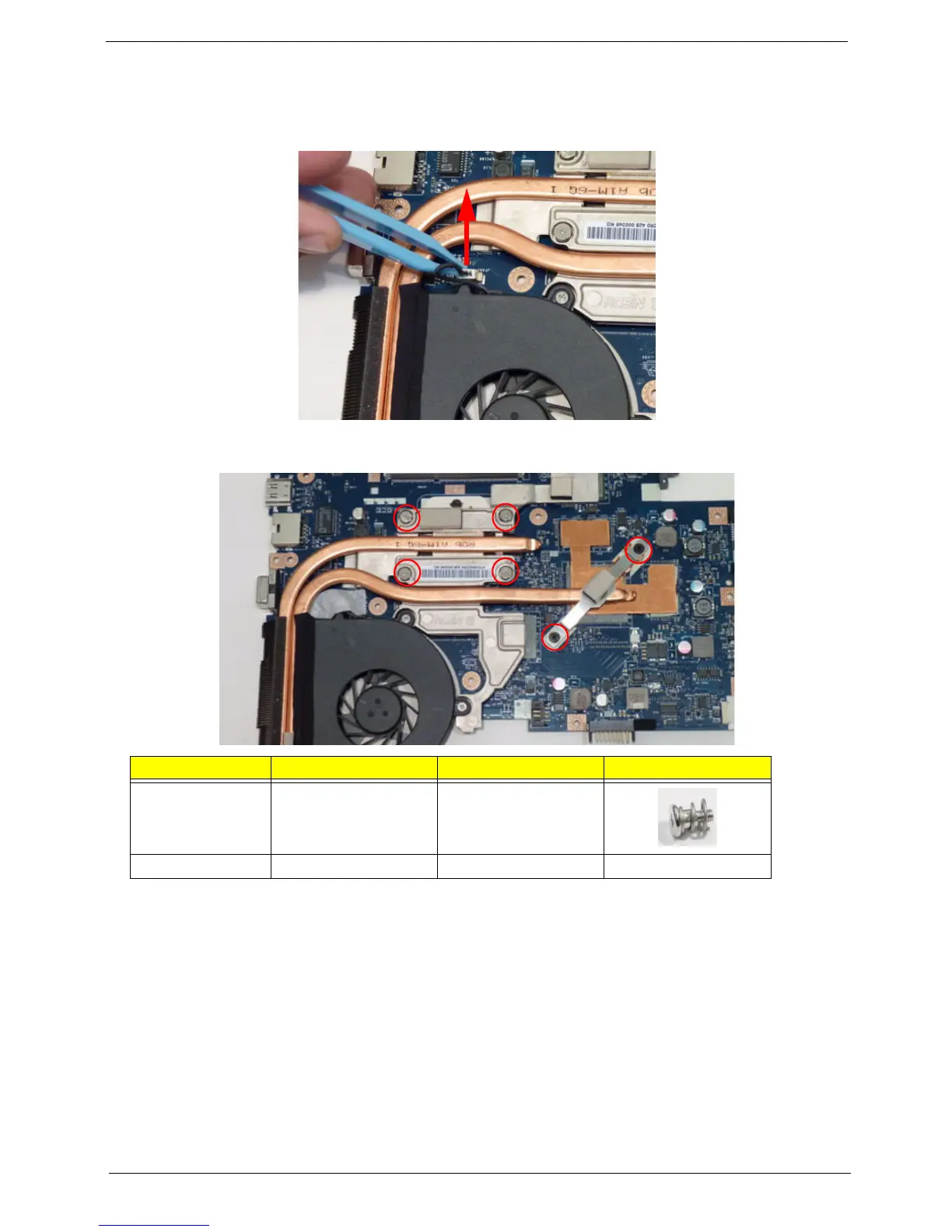

2. Disconnect the fan cable.
3. Remove the four (4) securing screws (in reverse numerical order from screw 4 to 1), then the two (2) screws on
the GPU.
Step Size Quantity Screw Type
Thermal Module M2.5*3.2 4
GPU 2
1
2
3
4
