Acer ASPIRE 533 - Mainboard Bottom View

140 Chapter 5

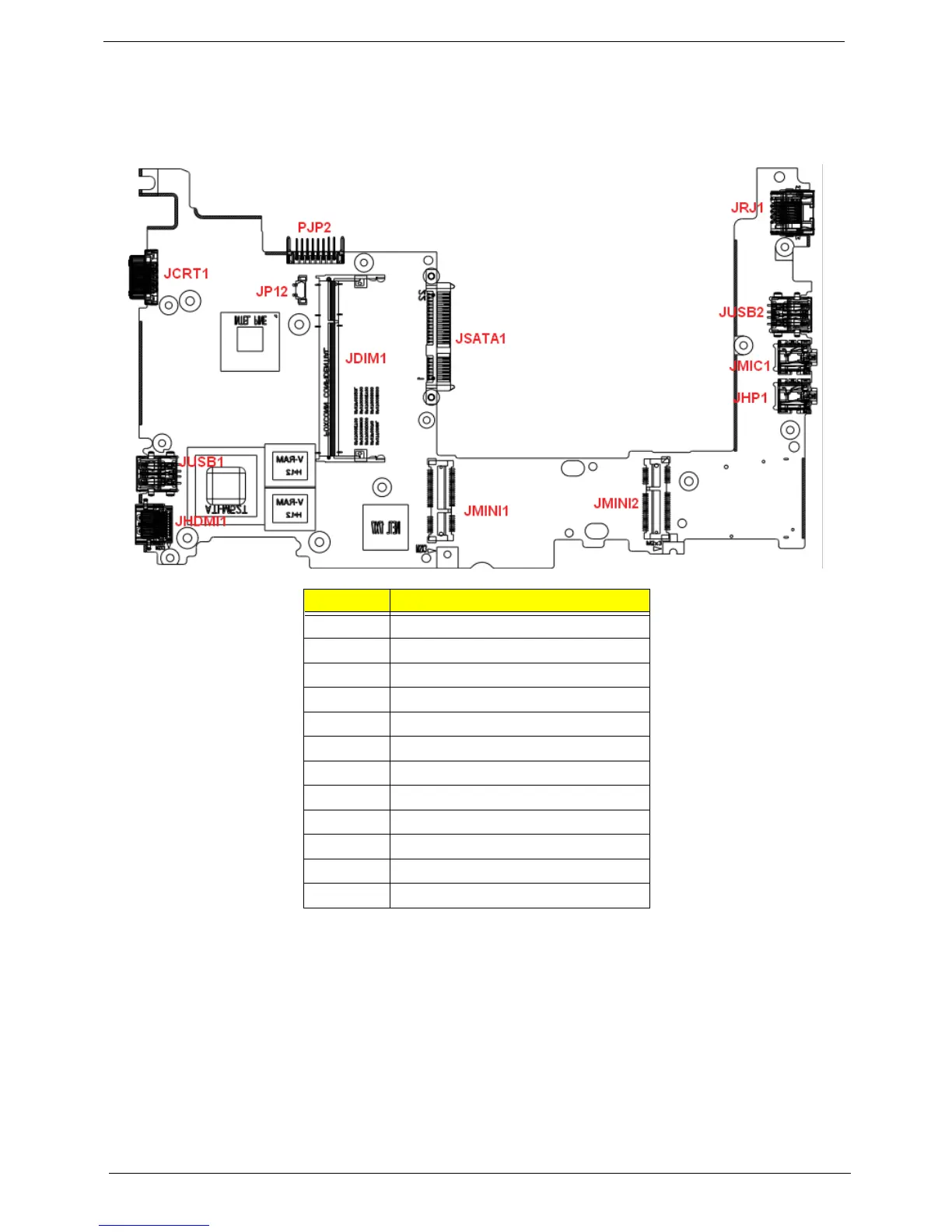

Mainboard Bottom View
ITEM DESCRIPTION
PJP2 Battery Connector
JCRT1 CRT Connector
JUSB1 USB Connector
JUSB2 USB Connector
JSATA1 SATA Connector
JDIM1 RAM Connector
JP12 FAN Connector
JDIM1 WWAN Connector
JMINI2 WLAN Connector
JHP1 Head-Phone Jack
JMIC1 MIC-In Jack
JRJ1 RJ45 Connector
