Replacing the LCD Panel

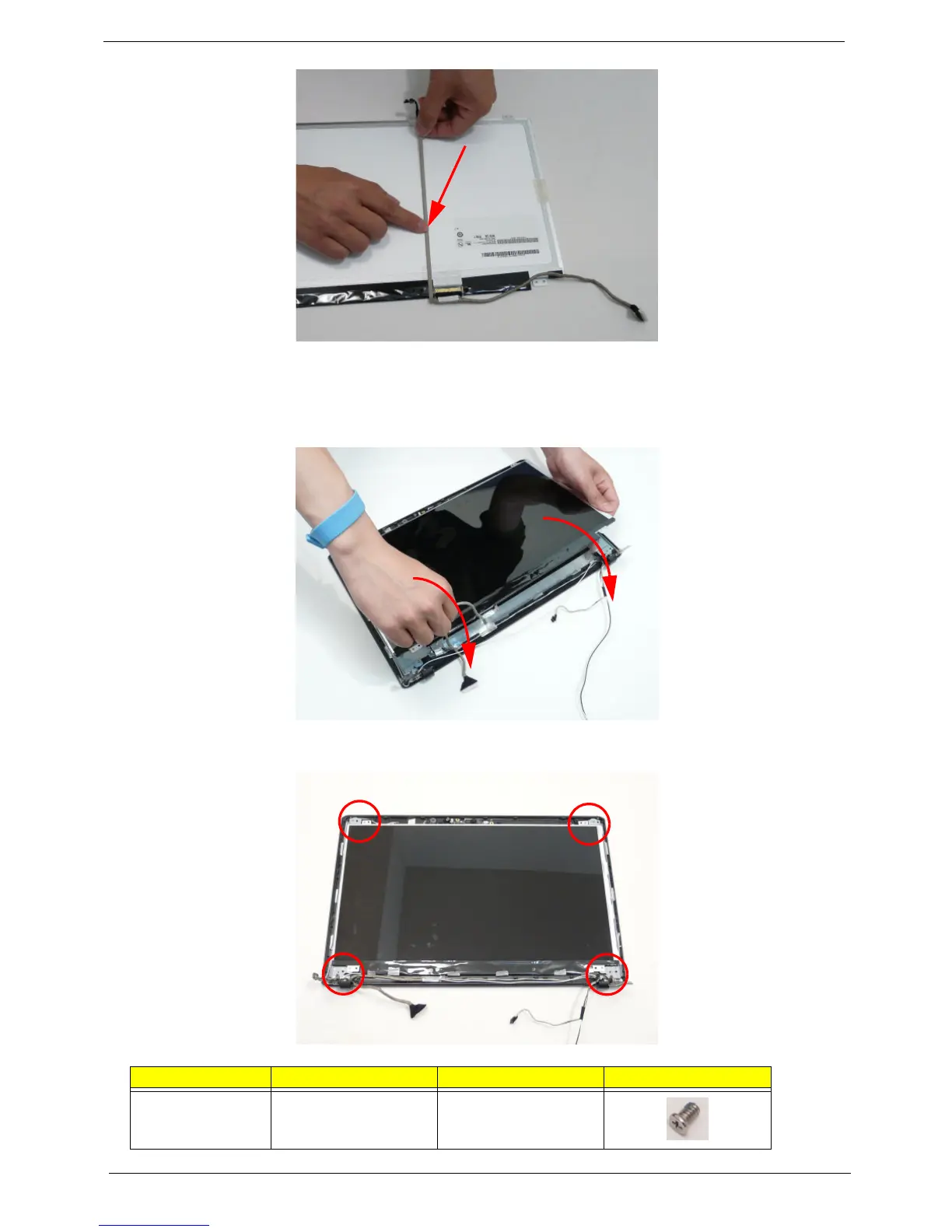

1. Place the LCD Panel into of the LCD Cover back edge first, aligning the pins with the holes in the
mounting tabs.
2. Insert the four screws to secure the LCD Panel to the LCD Module.
Step Size Quantity Screw Type
LCD Panel M2*3 4
