Acer Aspire 5534 Series - Removing the Hard Disk Drive Module

Chapter 3 47
Removing the Hard Disk Drive Module
1. See “Removing the Battery Pack” on page 46

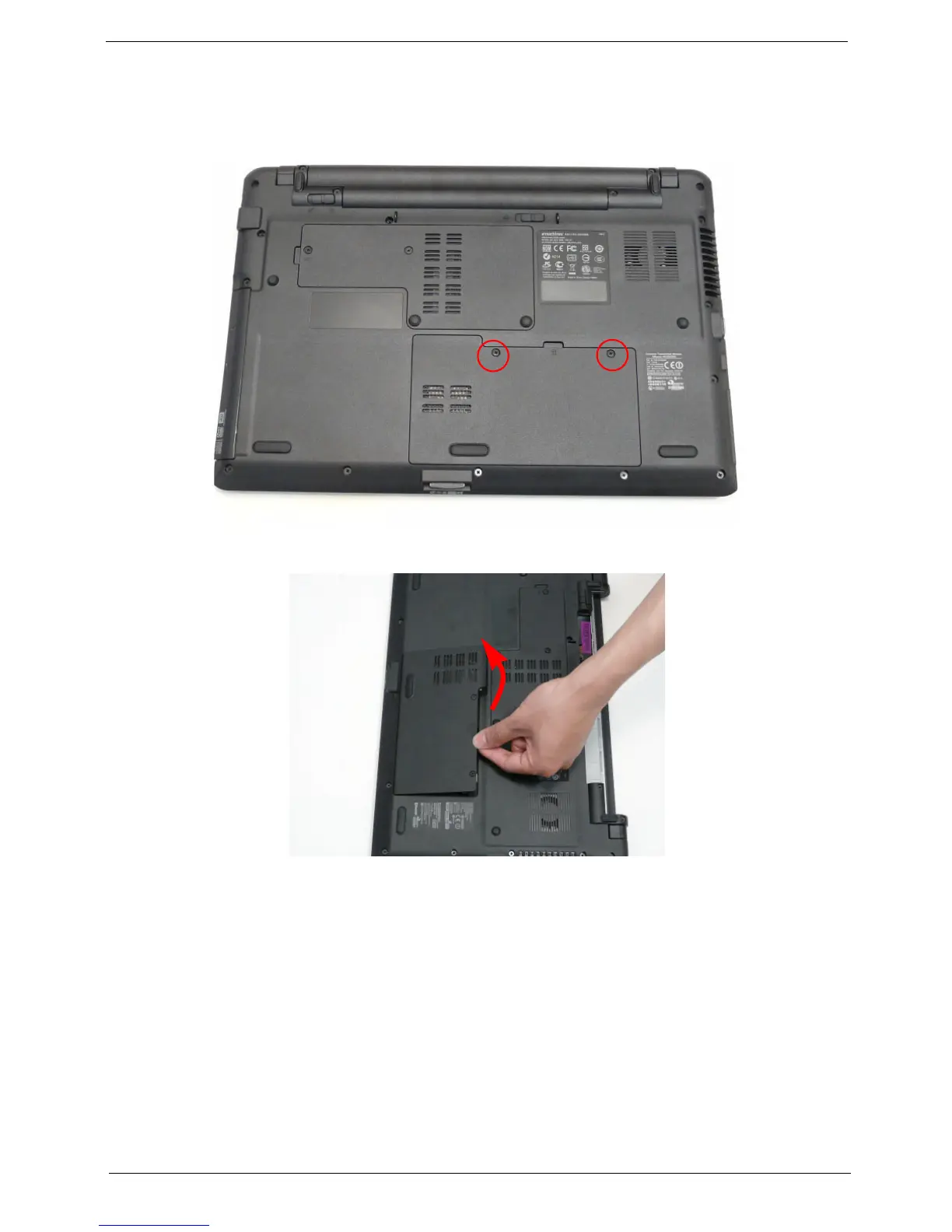

2. Loosen the two captive screws in the HDD Cover.
3. Lift the HDD cover up using the finger tab to remove. Six tabs hold the door in place.
4. Remove the two screws securing the HDD Module in place.
