Acer Aspire 5738 Series User Manual

82 Chapter 3

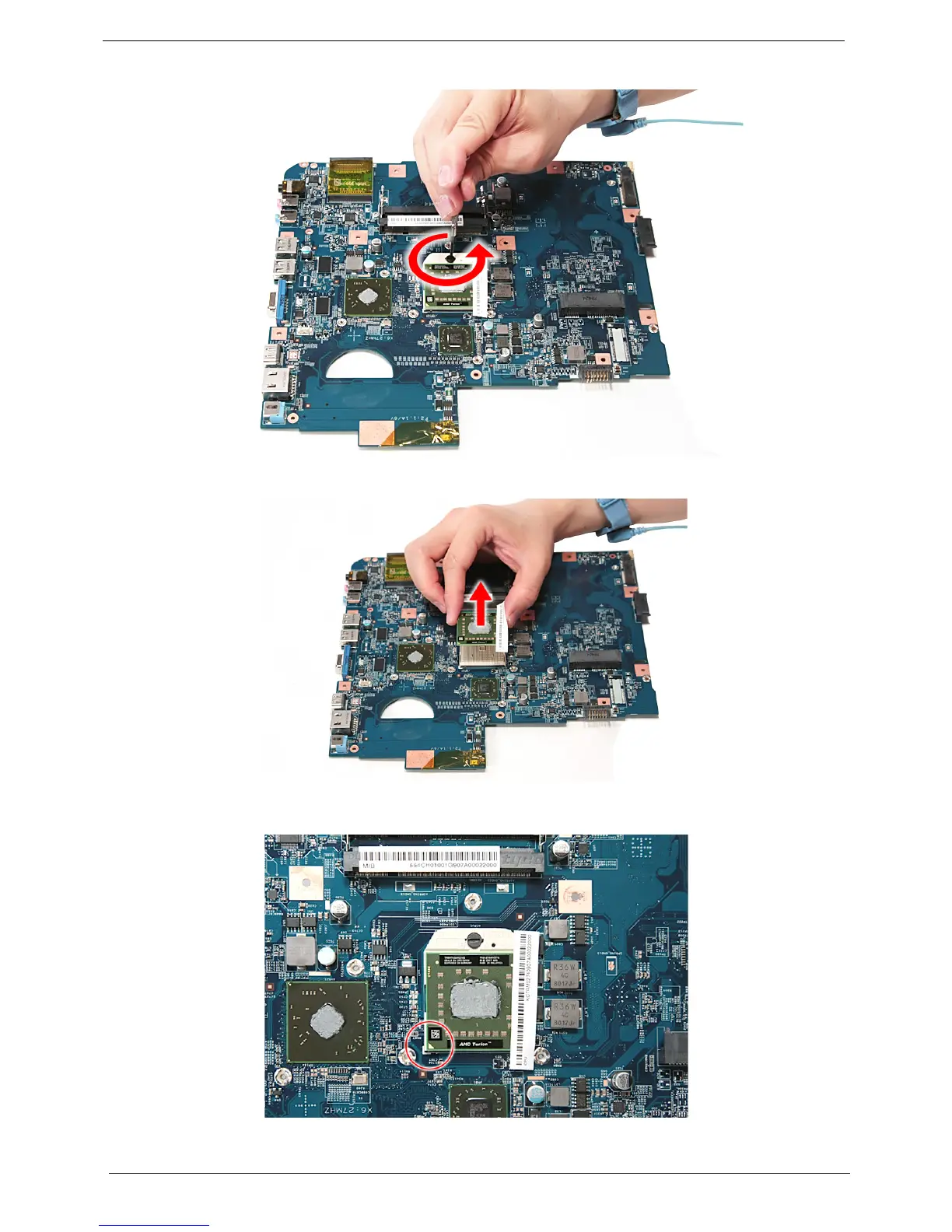

19. Using a flat screwdriver, turn the CPU socket latch counter-clockwise to release the CPU.
20. Lift up carefully to remove the CPU.
NOTE: When installing the CPU, make sure to install the CPU with PIN 1 at the corner as shown.

Acer Aspire 5738 Series Specifications

General

Screen Resolution	1366 x 768
Memory Type	DDR2
Graphics	Intel GMA 4500MHD
Operating System	Windows Vista or Windows 7
Battery	6-cell Lithium Ion
Battery Life	Up to 3 hours
Weight	2.7 kg
Display	15.6 inches
RAM	4 GB
Storage	320 GB HDD
Optical Drive	DVD Super Multi
Chipset	Intel GM45 Express
Wireless	Wi-Fi 802.11b/g/n
Ports	3 x USB 2.0, 1 x HDMI, 1 x VGA, 1 x Ethernet, 1 x Headphone, 1 x Microphone
Processor	Intel Core 2 Duo
