46 Chapter 3

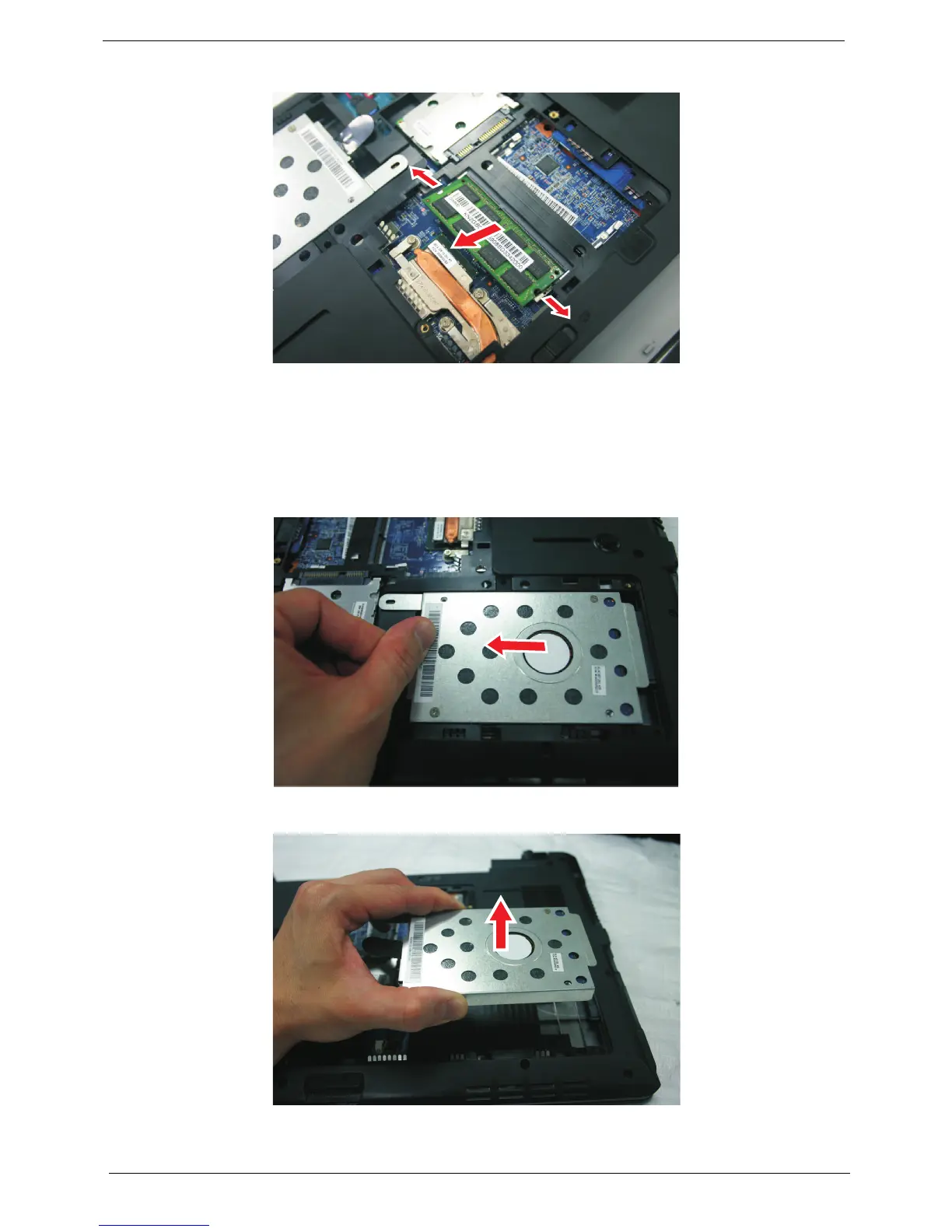

4. Do the same to the other socket if there is any DIMM present.
Removing the Hard Disk Drive Module
1. See “Removing the Battery Pack” on page 42.
2. See “Removing the Lower Cover” on page 43.
3. Using the plastic tab, slide the hard disk drive module away from the connector.
4. Lift up the hard disk module to remove from the bay.
NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.
To Next Page
