Chapter 5 91
Top and Bottom Views

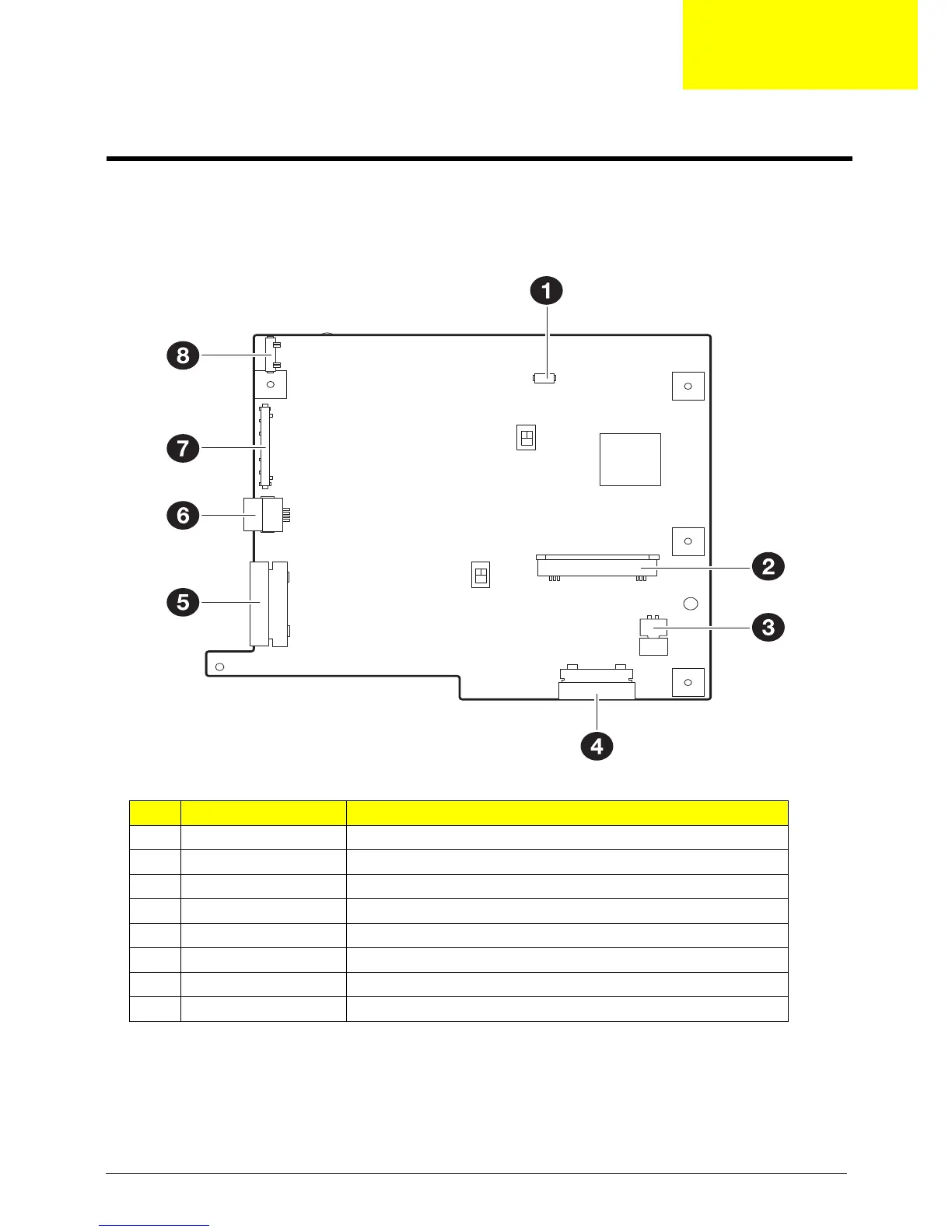

Aspire 5810T/5810TZ/5410T Top View
No. Code Connector
1 SPK1 Speaker cable connector
2 KB1 Keyboard cable connector
3 TP1 Touchpad cable connector
4 CN1 Card reader cable connector
5 CN3 Top CRT cable connector
6 FAN1 Thermal module fan cable connector
7 LCD1 LCD cable connector
8 BTB2 Power button cable connector
Connector Locations
Chapter 5
