Replacing the Thermal Module
IMPORTANT: Apply a suitable thermal grease and ensure all heat pads are in place before replacing the Thermal
Module.
The following thermal grease types are approved for use:
• Silmore GP50
• Honeywell
• Jet Motor 7762
The following thermal pads are approved for use:
• Eapus XR-PE
1. See “Replacing the CPU” on page 110.
2. Remove all traces of thermal grease from the CPU using a lint-free cloth or cotton swab and Isopropyl
Alcohol, Acetone, or other approved cleaning agent.
3. Apply a small amount of thermal grease to the centre of the CPU—there is no need to spread the grease
manually, the force used during the installation of the Thermal Module is sufficient.

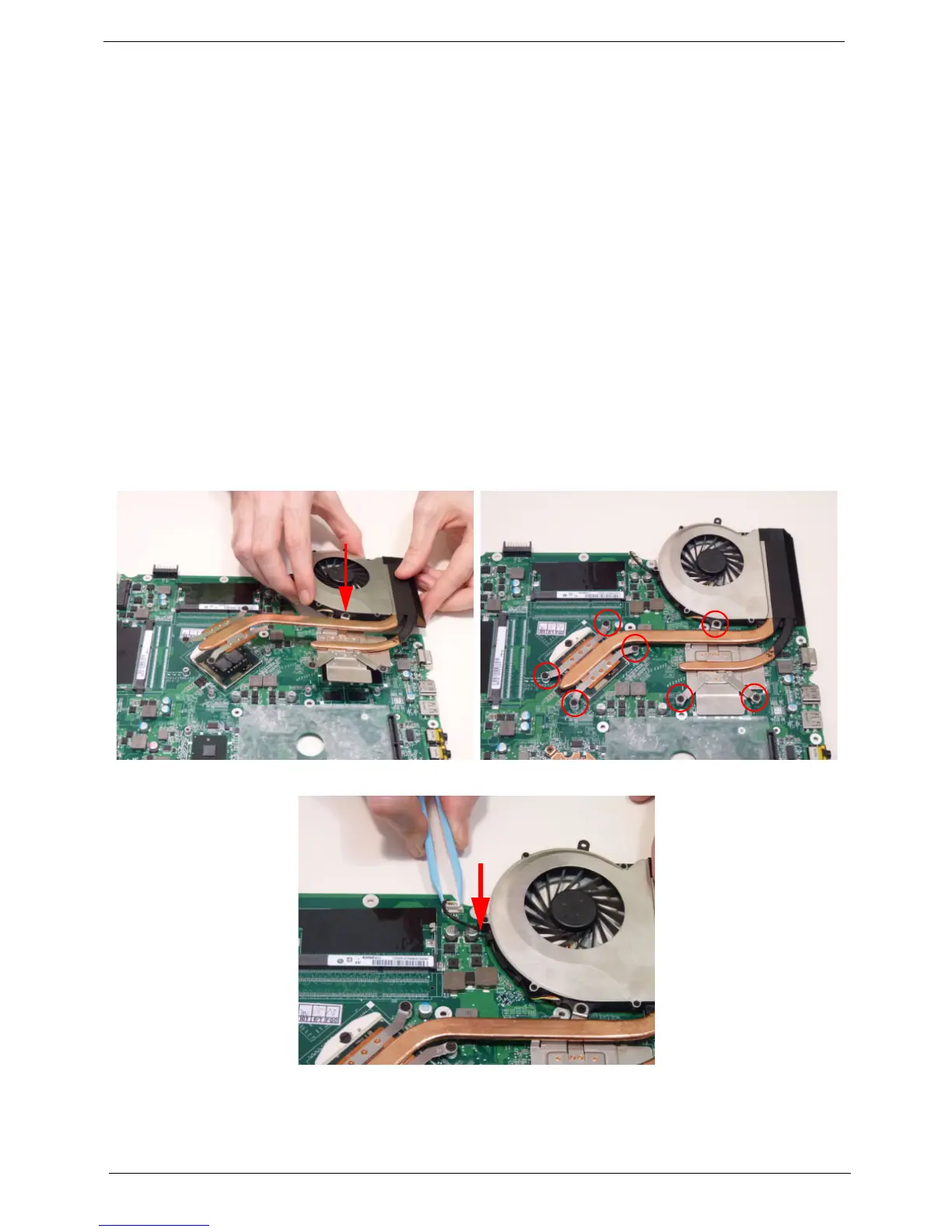

4. Align the screw holes on the Thermal Module and
Mainboard then replace the module. Keep the
module as level as possible to spread the thermal
grease evenly.
5. Replace the seven (7) securing screws to secure
the Thermal Module in place.
6. Connect the fan cable.
