Removing the PCH Heatsink
1. See “Removing the Mainboard” on page 76.

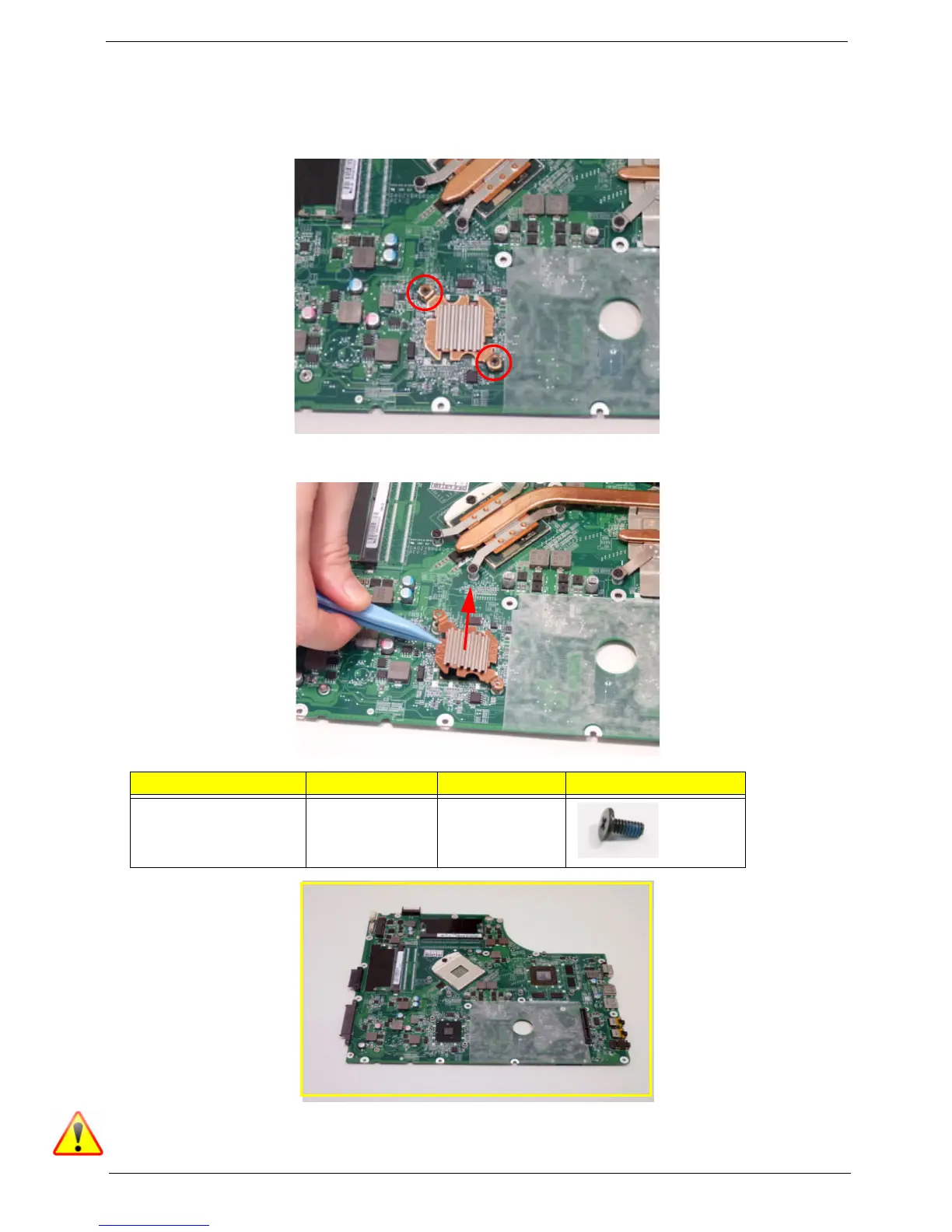

2. Loosen the two (2) captive screws.
3. Lift the thermal unit away.
NOTE: Circuit boards >10 cm² have been highlighted with a yellow rectangle as shown in the
previous image. Please detach the circuit board and follow local regulations for disposal.
Step Screw Quantity Screw Type.
Removing the PCH
Heatsink
M2.5*6.0 2
