188 Chapter 3
External Module Reassembly Instructions

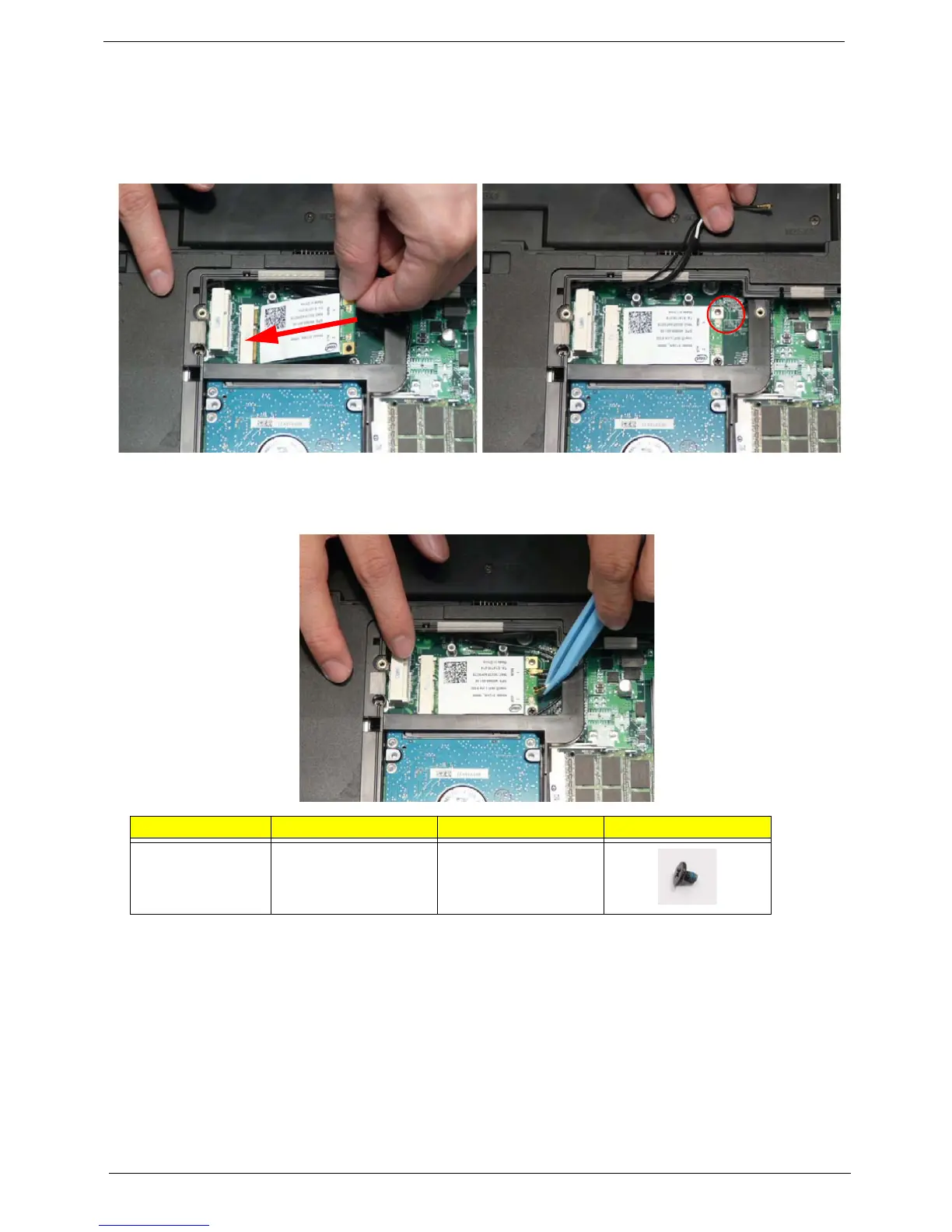

Replacing the WLAN Module
1. Insert the WLAN board into the WLAN socket. 2. Replace the single screw to secure the module.
3. Connect the two antenna cables to the module.
NOTE: The black antenna cable connects to the upper terminal and the white antenna cable to the lower
terminal.
Step Size Quantity Screw Type
WLAN Module M2*3 2
