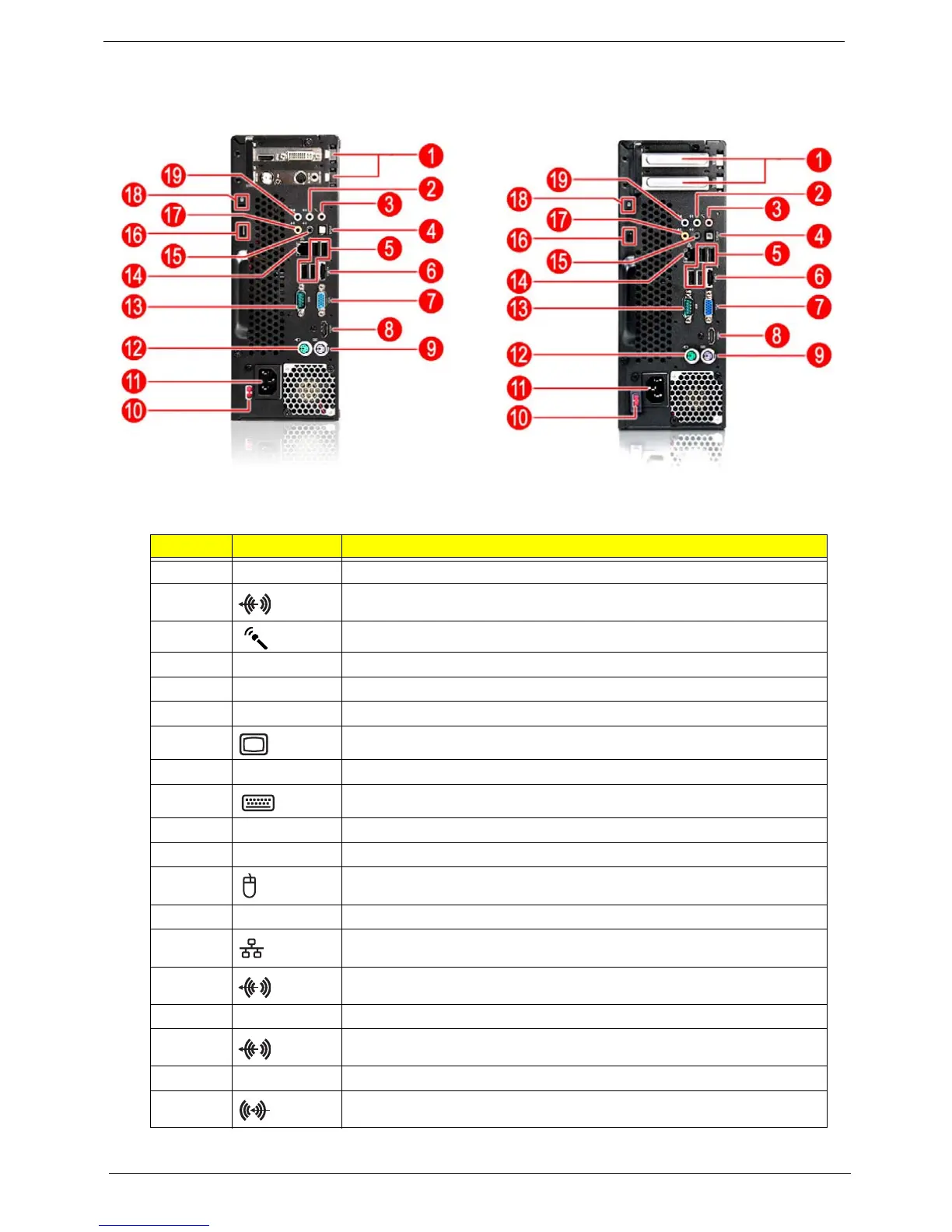

Rear Panel
No. Icon Component
1 Expansion slot (Photo shows graphics card and TV tuner card)
2 Line-out jack
3 Microphone/speaker-out/line-in jack
4S/PDIF port
5 USB 2.0 ports
6eSATA port
7 VGA monitor port
8 HDMI port
9 PS2 keyboard port
10 Voltage selector switch
11 Power connector
12 PS2 mouse port
13 Serial port
14 Gigabit LAN port (10/100/1000 Mbps)
15 Rear speaker/surround out jack
16 Keyhole
17 Center speaker/subwoofer jack
18 Kensington lock slot
19 Audio in or side speaker jack
