Removing the Front I/O and Card Reader Boards
1. See “Removing the Side Panel” on page 28.
2. See “Removing the Front Bezel” on page 29.
3. See “Removing the Heat Sink Fan Assembly” on page 30.
4. See “Removing the Processor” on page 32.
5. See “Removing the Optical Drive” on page 34.
6. See “Removing the Hard Disk Drive” on page 37.
7. See “Removing the Memory Modules” on page 42.

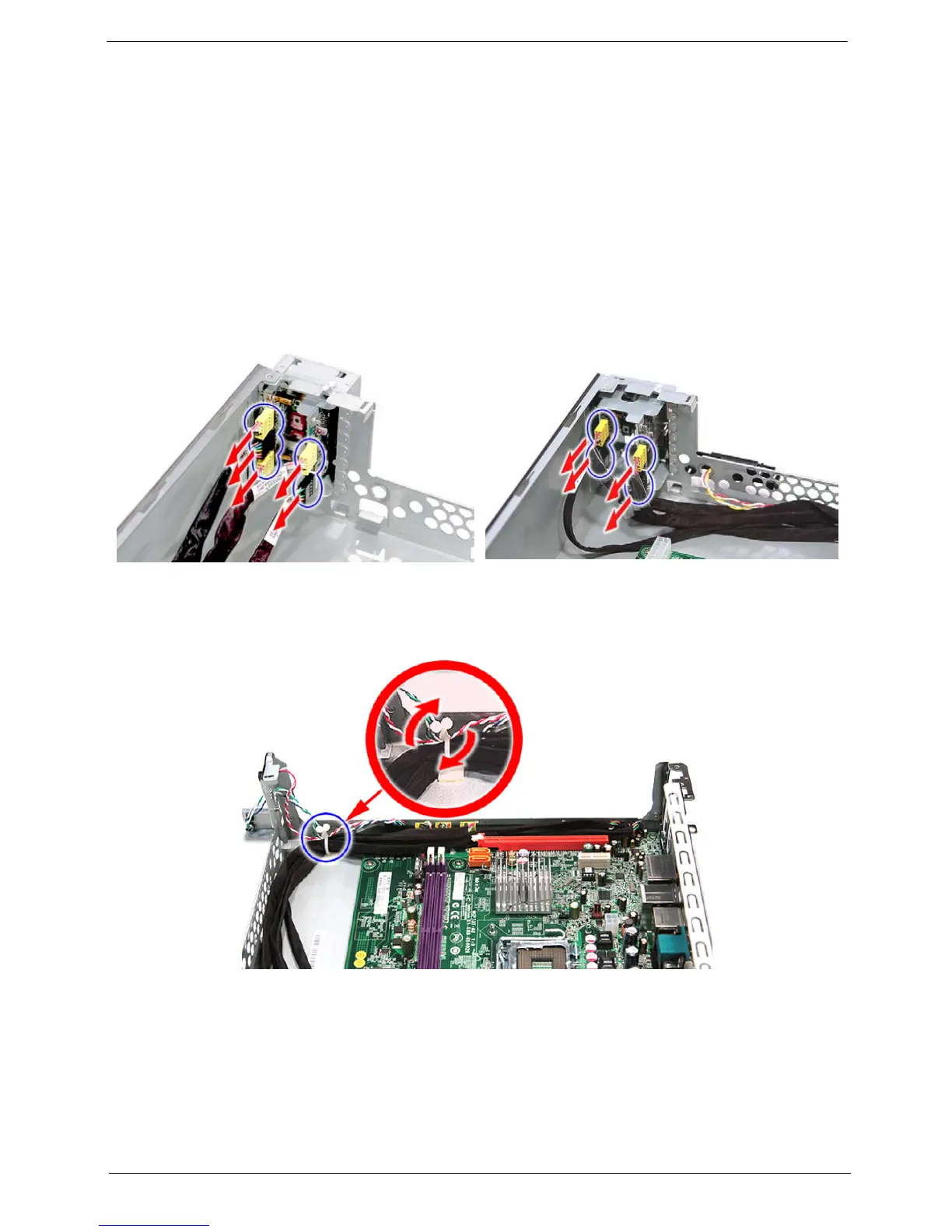

8. Disconnect one end of the USB, 1394, and audio cables from the I/O and card reader boards.
9. Open the cable retention clip.
