5 Configuring the hard disk drive
114
(4) Close the door of the home server.
Replacing a failed hard disk drive
1 Follow steps 1 and 2 of the “Removing a hard disk drive” section.
2 Remove the HDD from the carrier.

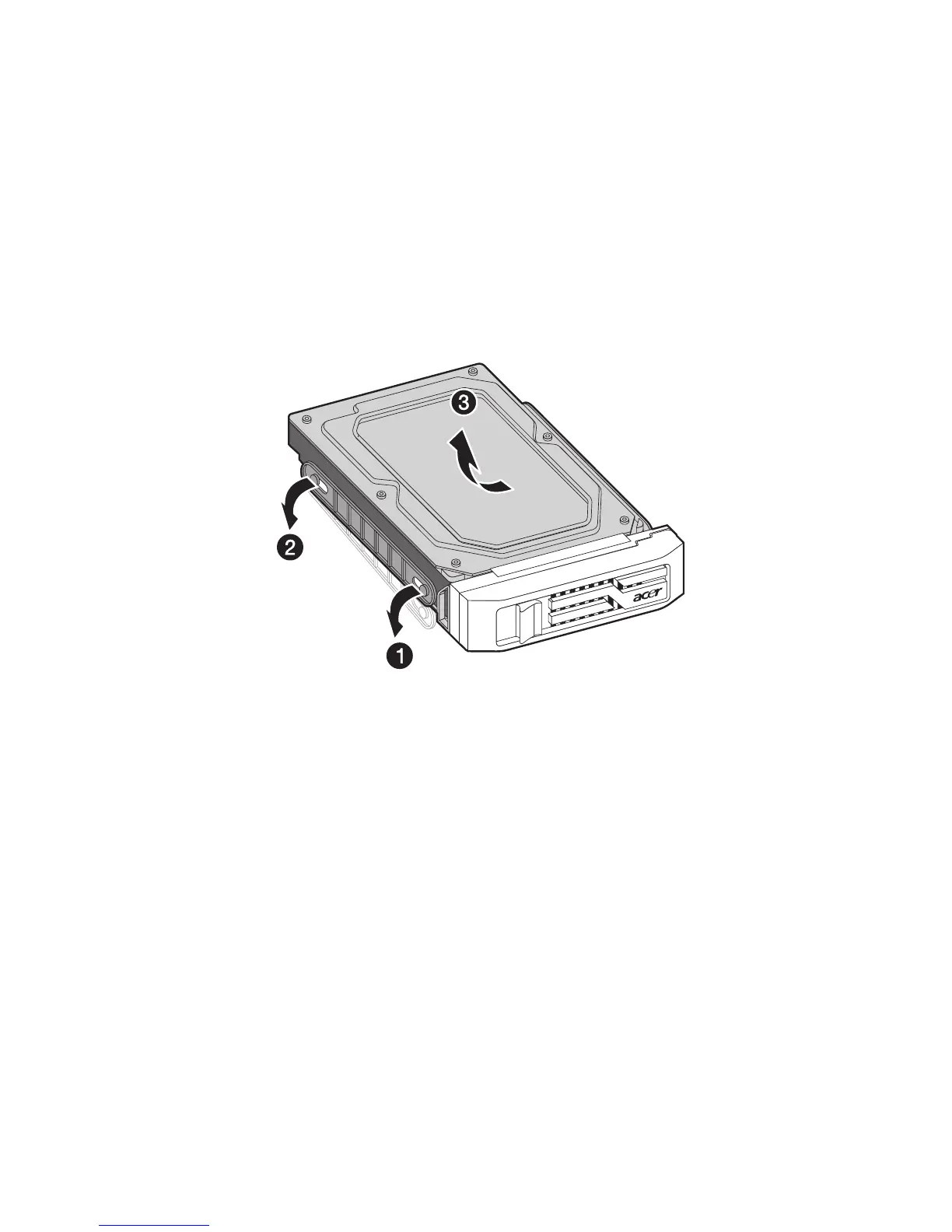

(1) Gently pry open the left side rail (1, 2), as shown.
(2) Remove the drive from the carrier (3).
3 Install the new HDD into the carrier.
(1) Insert the new drive into the right side of the carrier aligning
the pins into the HDD’s mounting holes (1).
