Chapter 3 67

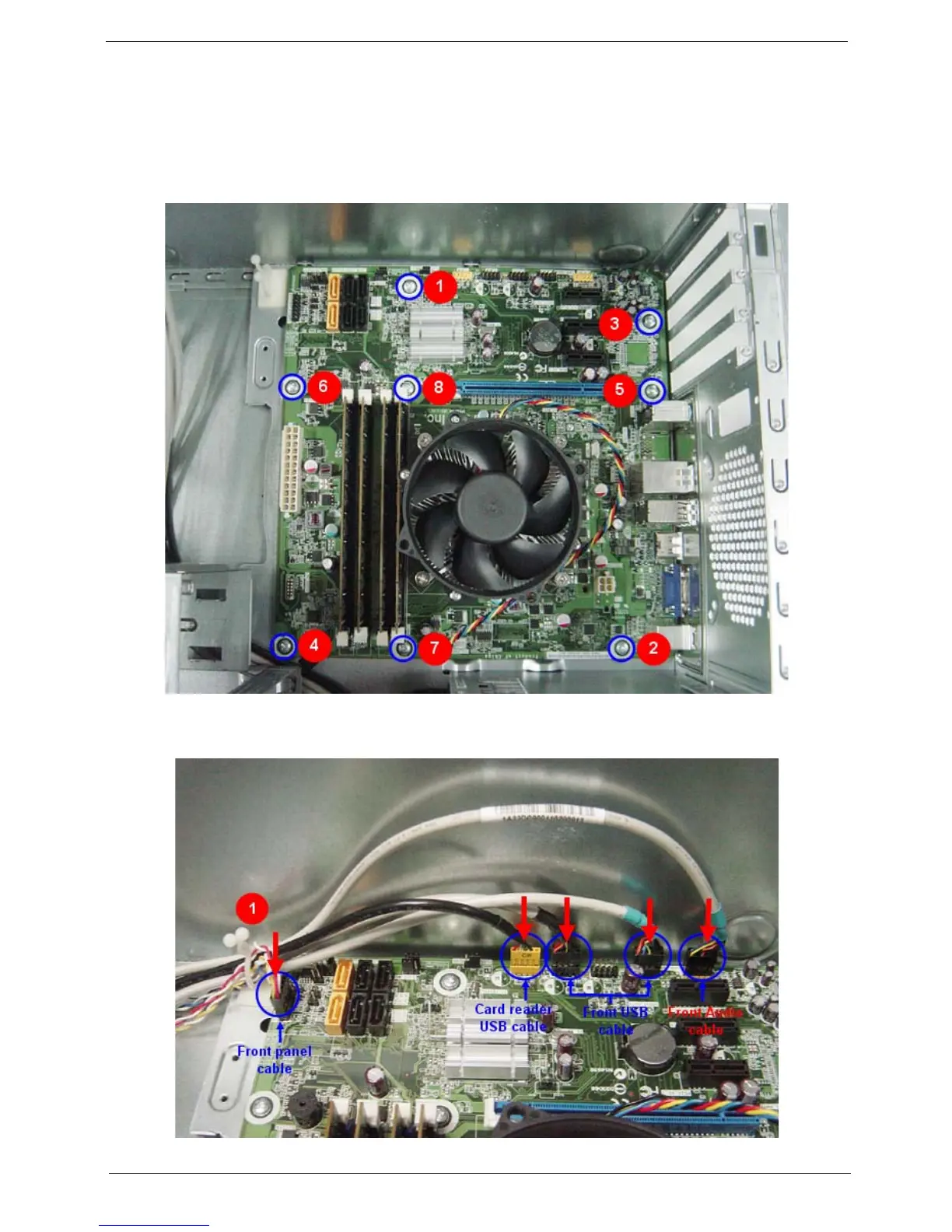

Install the Main Board
1. Remove the Daughter Board.(Please refer to page 48)
2. Put M/B in the chassis aligning the M/B I/O connector with I/O shielding.
3. Fix1~ 8 pcs screws into the corresponding hole.
NOTE: Make sure the I/O spring touching M/B after installing.
4. Connector the front panel cable, card reader USB cable, front USB cable and front Audio cable to
motherboard, then close the cable retention clip(1).
To Next Page
